(Ex.)

3. Type & Dimensions

(Unit:mm)

4.Rated value

5.Package

Product specifications in this catalog are as of Jan.26,2013,and are subject to change or obsolescence without notice.

Please consult the approval sheet before ordering.

Please read rating and !Cautions first.

CHIP MONOLITHIC CERAMIC CAPACITOR FOR GENERAL

g

0.2 to 0.7

0.1 uF

Temp. Range

(Ref.Temp.)

mark (8) Packaging

(4)

DC Rated

Voltage

Packaging Unit

-80 to 30 % +80/-20 % -25 to 85 °C -25 to 85 °C

(20 °C)

(3) Temperature Characteristics

(Public STD Code):F(JIS)

Specifications and Test

Methods

(Operationg

Temp. Range)

Temp. coeff

or Cap. Change

(5) Nominal

Capacitance

(6)

Capacitance

Tolerance

50 Vdc

0.7 min.

(2) T

0.85±0.1

This product specification is applied to Chip Monolithic Ceramic Capacitor used for General Electronic equipment.

(1)-1 L

2.0±0.1

(1)-2 W

1.25±0.1

e

D

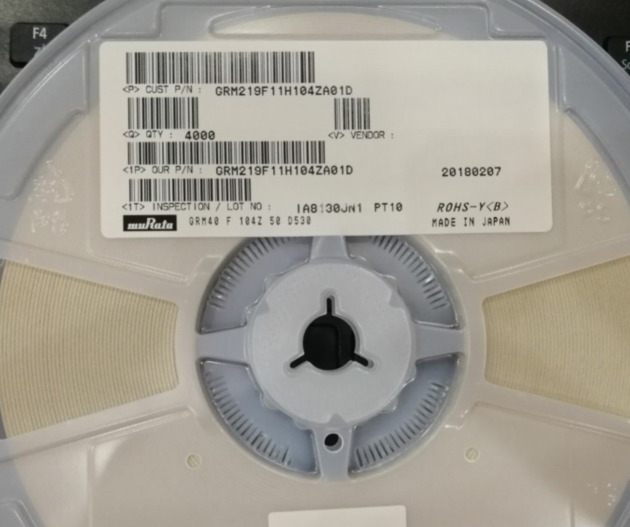

f180mm Reel

PAPER W8P4

4000 pcs./Reel

J

f330mm Reel

PAPER W8P4

10000 pcs./Reel
