SMF15AT1G

ESD 抑制器/TVS 二极管 ZENER TVS

The SMF5.0AT1G SMF15AT1G Series is designed to protect voltage sensitive components from high voltage, high energy transients. Excellent clamping capability, high surge capability, low zener impedance and fast response time. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines, power supplies and many other industrial/consumer applications.

SMF15AT1G  Features

• Stand−off Voltage: 5 − 58 Volts

• Peak Power − 200 Watts @ 1 ms (SMF5.0A − SMF58A)

• Low Leakage

• Response Time is Typically < 1 ns

• ESD Rating of Class 3 (> 16 kV) per Human Body Model

• ESD Rating of Level 4 (8 kV Contact Discharge) per IEC61000−4−2

• EFT (Electrical Fast Transients) Rating of 40 A per IEC61000−4−4

• Low Profile − Maximum Height of 1.0 mm

• Small Footprint − Footprint Area of 8.45 mm2

• Supplied in 8 mm Tape and Reel − 3,000 Units per Reel

• Cathode Indicated by Polarity Band

• Lead Orientation in Tape: Cathode Lead to Sprocket Holes

• These Devices are Pb−Free and are RoHS Compliant

型号:SMF15AT1G

制造商:Littelfuse

产品种类:ESD 抑制器/TVS 二极管

RoHS: 无铅环保

系列:SMF AT1G

极性:Unidirectional

端接类型:SMD/SMT

击穿电压:18.5 V

工作电压:15 V

钳位电压:24.4 V

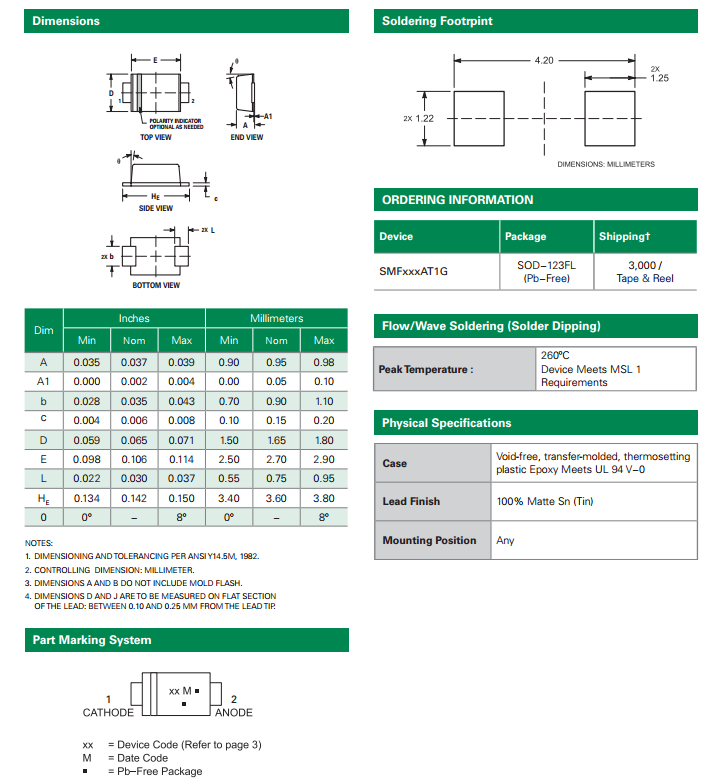

封装 / 箱体:SOD-123FL-2

Pd-功率耗散:1 kW

工作温度:- 55 ℃

工作温度:+ 150 ℃

封装:Cut Tape

封装:Reel

商标:Littelfuse

产品类型:TVS Diodes / ESD Suppression Diodes

工厂包装数量:3000

子类别:TVS Diodes / ESD Suppression Diodes

零件号别名:SMF15A
