Features

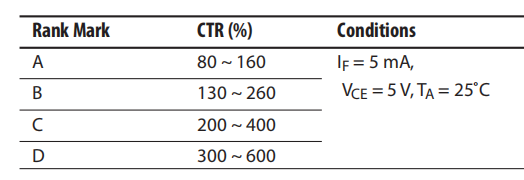

 Current Transfer Ratio

(CTR: min. 50% at IF = 5 mA, VCE = 5 V)

 High input-output isolation voltage

(Viso = 3750 Vrms)

 High collector-emitter voltage (VCEO = 80 V)

 Response time

(tr: typ., 4 μs at VCE = 2 V, IC = 2 mA, RL = 100 Ω)

 Mini-fl at package (2.0 mm profi le) in tape and reel

package

 UL approved

 CSA approved

 IEC/EN/DIN EN 60747-5-2 approved

 Options available:

– IEC/EN/DIN EN 60747-5-2 approvals (060)

Applications

 I/O interfaces for computers

 System appliances, measuring instruments

 Signal transmission between circuits of diff erent

potentials and impedances

 Feedback circuit in power supply

Description

The HCPL-181 contains a light emitting diode optically

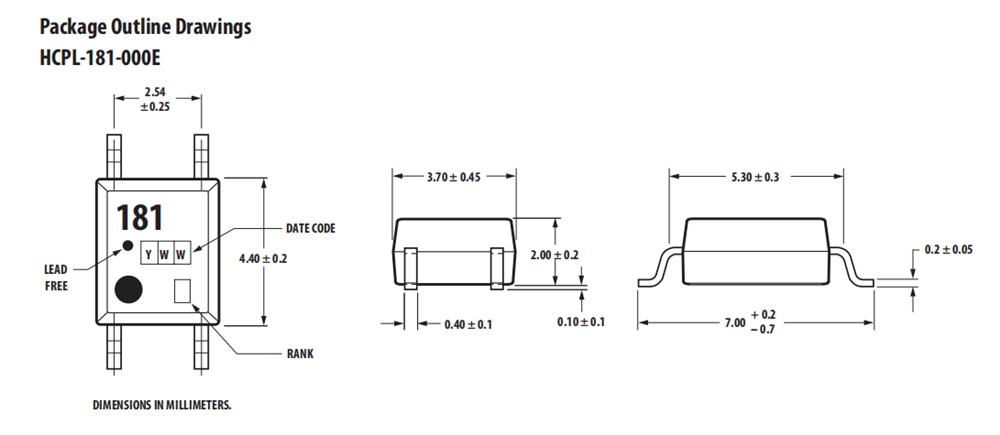

coupled to a phototransistor. It is packaged in a 4-pin minifl at SMD package with a 2.0 mm profi le. The small dimension

of this product allows signifi cant space saving. The package

volume is 30% smaller than that of conventional DIP type.

Input-output isolation voltage is 3750 Vrms. Response

time, tr, is typically 4 μs and minimum CTR is 50% at input

current of 5 mA.
