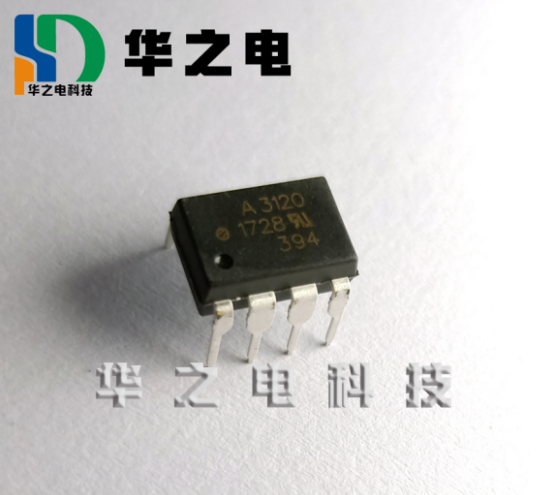

HCPL-3120-000E
AVAGO
DIP
黑色
环保
1000/盒
泰国
19+
企业名:深圳市华之电科技有限公司
类型:贸易/代理/分销
电话: 0755-23884658
手机:13822060018
联系人:陈先生
微信:
邮箱:3005133872@qq.com
地址:广东深圳深圳市福田区振华路飞亚达大厦西座925-926室
HCPL-3120-000E
HCPL-3120-000E
HCPL-3120-000E
HCPL-3120-000E
Description
The HCPL-3120 contains a GaAsP LED while the HCPL--J312 and the HCNW3120 contain an AlGaAs LED. The LED
is optically coupled to an integrated circuit with a power
output stage. These optocouplers are ideally suited for
driving power IGBTs and MOSFETs used in motor control
inverter applications. The high operating voltage range
of the output stage provides the drive voltages required
by gate controlled devices. The voltage and current
supplied by these optocouplers make them ideally
suited for directly driving IGBTs with ratings up to 1200
V/100 A. For IGBTs with higher ratings, the HCPL-3120
series can be used to drive a discrete power stage which

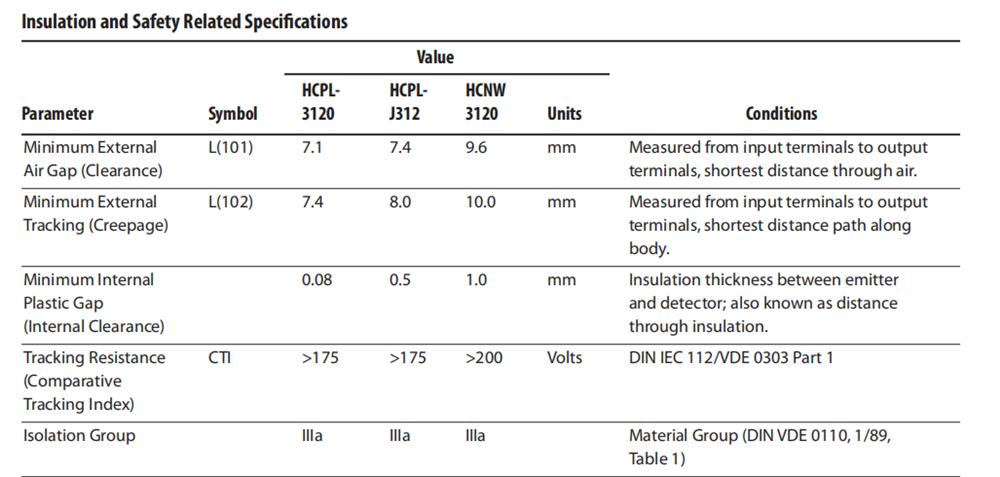

drives the IGBT gate. The HCNW3120 has the highest insulation voltage of VIORM=1414Vpeak in the IEC/EN/DIN
EN 60747-5-2. The HCPL-J312 has an insulation voltage
of VIORM=891Vpeak and the VIORM=630Vpeak is also
available with the HCPL-3120 (Option060).
Features
• 2.5 A maximum peak output current
• 2.0 A minimum peak output current
• 25 kV/μs minimum Common Mode Rejection (CMR) at
VCM = 1500 V • 0.5 V maximum low level output voltage (VOL)
Eliminates need for negative gate drive
• ICC = 5 mA maximum supply current
• Under Voltage Lock-Out protection (UVLO) with
hysteresis
• Wide operating VCC range: 15 to 30Volts
• 500 ns maximum switching speeds
• Industrial temperature range: ‑40°C to 100°C
• SafetyApproval:
