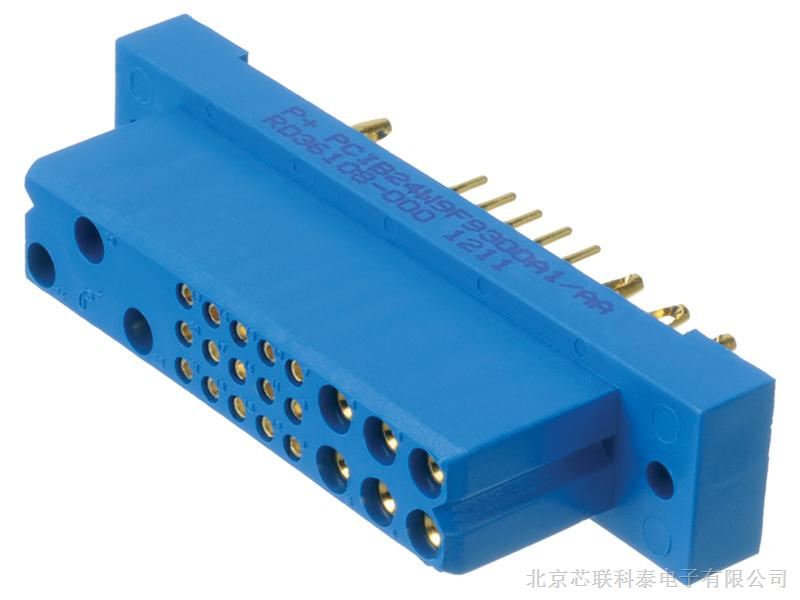

PCIB24W9F9300A1/AA details PCIB Series, 250 mating cycles minimum 9 Size 16 & 15 Size 22 High Reliability Closed Entry Female Contacts Press Fit Connector All Contacts Included No Hardware Included Mixed Density, Low Profile RoHS Compliant UL Recognized, TÜV Recognized General Part Number Prefix PCIB Performance Level Industrial Qualifications UL #E49351 CSA #LR54219 Materials Insulator Material Polyester Insulator Color Blue Flammability Rating UL 94V-0 Contact Material Copper Alloy Contact Plating Gold flash 30µ Au (min) 50µ Au (min) Shell Material N/A Electrical Insulator Resistance (GΩ) 5.0 Proof Voltage (V rms) 1000 to 3000 Working Voltage (V rms) 1000 Initial Contact Resistance (mΩ, max) 0.7 Contact Current Rating (A) 45 Environmental Temperature Range (ºC) -55 to 125 Mechanical Shape Rectangular Body Style Free cable Panel mount Insulator Construction One-piece Polarization Method Insulator keyway Locking System N/A Blind Mating 1 Clearance and Creepage (mm min) 2.00 to 6.40 Contact Style Fixed Removable Contact Size #22 #16 Female Contact Design Open entry Closed entry Contact Retention Mechanism Metal clip Press-in Contact Retention (N) 27 to 45 Contact Termination Wire PCB Mating Cycles 250 General Part Number Prefix PCIA Performance Level Industrial Qualifications UL #E49351 CSA #LR54219 Materials Insulator Material Polyester Insulator Color Blue Flammability Rating UL 94V-0 Contact Material Copper Alloy Contact Plating Gold flash 30µ Au (min) 50µ Au (min) Shell Material N/A Electrical Insulator Resistance (GΩ) 5.0 Proof Voltage (V rms) 3000 Working Voltage (V rms) 1000 Initial Contact Resistance (mΩ, max) 0.7 Contact Current Rating (A) 38 Environmental Temperature Range (ºC) -55 to 125 Mechanical Shape Rectangular Body Style Free cable Panel mount Insulator Construction One-piece Polarization Method Insulator keyway Locking System N/A Clearance and Creepage (mm min) 2.00 to 6.40 Contact Style Fixed Removable Contact Size #22 #16 Female Contact Design Open entry Closed entry Contact Retention Mechanism Metal clip Press-in Contact Retention (N) 27 to 67 Contact Termination Wire PCB Mating Cycles 250 General Part Number Prefix FR Performance Level Industrial Materials Insulator Material DAP Insulator Color Black Flammability Rating UL 94V-0 Contact Material Copper Alloy Contact Plating Gold flash 30µ Au (min) 50µ Au (min) Shell Material N/A Electrical Insulator Resistance (GΩ) 5.0 Proof Voltage (V rms) 300 to 1800 Working Voltage (V rms) 300 Initial Contact Resistance (mΩ, max) 1.6 Contact Current Rating (A) 13 Environmental Temperature Range (ºC) -55 to 125 Lead Free Solder Process 1 Waterproof IP67 Mechanical Shape Circular Body Style Free cable Panel mount Insulator Construction One-piece Polarization Method Insulator keyway Locking System Integrated Clearance and Creepage (mm min) 0.70 to 5.00 Contact Style Fixed Removable Contact Size #22 #20 #16 #12 Female Contact Design Open entry Closed entry Contact Retention Mechanism Metal clip Contact Retention (N) 27 to 89 Contact Termination Wire PCB Mating Cycles 500 FC720N2 MC422N FS422N2 FC116N2/AA FC112N2S-1565.0 FC120N2 MC120N MC116N/AA FC112N2S/AA FC114N2/AA-1565.0 FC6020D2 95CN 95CN FR11MP520K1/AA FR11MP520K2/AA FR11MP520L4/AA FR11MP520M5/AA FR11MP722K2/AA FR11MP822K0/AA FR11MP922K0/AA FR11MP922K1/AA? VMCT34M00R0Y60-S616 PLA04F1000/AA PLB10W2M400A1 PLB10W2F400A1 VPX6W6M400 VPX6W6F9300A1 VPB30W8M6200A1/AA VPB30W8M400A1 VPB30W8F9300A1 FR11MP922K1/AA PCIH49W25F400A1-379.0 PCIH47F9300A1/AA PCIH47F9300A1/AA-246.0 GMCT18F0E100J0/AA GMCT9F0E100J0/AA PCIH47F300A1/AA PCIH47M400A1/AA PCIH49W25F9400A1-379.0 PCIH49W25M400A1/AA-378.0 PCIH49W25F300A1/AA-379.0 PCIH49W25M9400A1-378.0 PCIH47F9300A1/AA-246.0 PCIH49W25F400A1-379.0 PCIH49W25M300A1/AA-378.0 PCIC16W7F300A1 PCIC16W7M400A1
