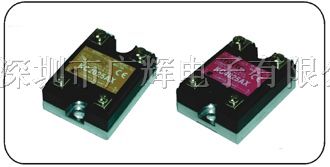

| KC20(CURRENT - VAC)(280VAC) |
| |
|
|
CURRENT CONTROL S.S.R |
|
KC2010AX |
|
KC2015AX |
|
KC2025AX |
|
KC2040AX |
|
KC2050AX |
|
KC2075AX |
|
KC2090AX |
|
KC 系列 | |
|
| |
|
| Product Description |
The analog switching relay works in accordance with the phase angle control principle, i.e. the output switching point in the AC sine wave depends on the control current. 4mA corresponds to no switching and 20mA corresponds to full sine wave (near line-ar power response). The relay switches off every time the output current crosses zero, and switches ON in accordance with the
applied control current |
| |
| 規格說明： |
|
型號. |
控制電壓範圍 |
最大負載電流 |
負載電壓範圍 |
最高峰止電壓 |
介質耐壓
輸入 - 輸出 |
介質耐壓
輸出 - 外殼 |
目錄下載 |
|
KC2010AX |
4~20mA
( DC3.8~10V ) |
10A |
24~280VAC |
600V peak |
4000Vrms |
2500Vrms |
 |
|
KC2015AX |
4~20mA
( DC3.8~10V ) |
15A |
24~280VAC |
600V peak |
4000Vrms |
2500Vrms |
|
|
KC2025AX |
4~20mA
( DC3.8~10V ) |
25A |
24~280VAC |
600V peak |
4000Vrms |
2500Vrms |
|
|
KC2040AX |
4~20mA
( DC3.8~10V ) |
40A |
24~280VAC |
600V peak |
4000Vrms |
2500Vrms |
|
|
KC2050AX |
4~20mA
( DC3.8~10V ) |
50A |
24~280VAC |
600V peak |
4000Vrms |
2500Vrms |
|
|
KC2075AX |
4~20mA
( DC3.8~10V ) |
75A |
24~280VAC |
600V peak |
4000Vrms |
2500Vrms |
|
|
KC2090AX |
4~20mA
( DC3.8~10V ) |
90A |
24~280VAC |
600V peak |
4000Vrms |
2500Vrms |
| |
| |
|
型號. |
工作頻率
範圍 |
有效功率 |
工作溫度 |
貯存溫度 |
連接溫度 |
重量 (g) |
CE- 標記 |
|
KC2010AX |
40 to 65 Hz |
>0.90 |
0° to +70c ° |
-20c° to +100c° |
125c ° |
Approx.
100g |
Yes |
|
KC2015AX |
40 to 65 Hz |
>0.90 |
0° to +70c ° |
-20c° to +100c° |
125c ° |
Approx.
100g |
Yes |
|
KC2025AX |
40 to 65 Hz |
>0.90 |
0° to +70c ° |
-20c° to +100c° |
125c ° |
Approx.
100g |
Yes |
|
KC2040AX |
40 to 65 Hz |
>0.90 |
0° to +70c ° |
-20c° to +100c° |
125c ° |
Approx.
100g |
Yes |
|
KC2050AX |
40 to 65 Hz |
>0.90 |
0° to +70c ° |
-20c° to +100c° |
125c ° |
Approx.
100g |
Yes |
|
KC2075AX |
40 to 65 Hz |
>0.90 |
0° to +70c ° |
-20c° to +100c° |
125c ° |
Approx.
100g |
Yes |
|
KC2090AX |
40 to 65 Hz |
>0.90 |
0° to +70c ° |
-20c° to +100c° |
125c ° |
Approx.
100g |
Yes | |
| |
| 輸出參數 |
|
|
最小工作電流 |
最大過載電流 |
突波電流 |
漏電電流 |
使用的保險絲電流 |
瞬間耐電流 |
瞬間耐電壓 |
|
10A |
150mA |
25A p |
120A p |
<4mA |
60A 2 s |
100A/ μ |
1000V/μ |
|
15A |
150mA |
25A p |
168A p |
<4mA |
180A 2 s |
100A/ μ |
1000V/μ |
|
25A |
150mA |
25A p |
300A p |
<4mA |
400A 2 s |
100A/ μ |
1000V/μ |
|
40A |
150mA |
25A p |
420A p |
<4mA |
1250A 2 s |
100A/ μ |
1000V/μ |
|
50A |
150mA |
25A p |
520A p |
<4mA |
1300A 2 s |
100A/μ |
1000V/μ |
|
75A |
150mA |
25A p |
750A p |
<4mA |
1800A 2 s |
100A/ μ |
1000V/μ |
|
90A |
150mA |
25A p |
1400A p |
<4mA |
7200A 2 s |
100A/ μ |
1000V/μ | |
| |
| 輸入參數 |
|
控制電壓範圍 |
接通電流 |
交斷電流 |
|
|
動態阻抗 |
允許輸入
電流 ( 最大 ) |
極性相反保護 |
|
4~20mA |
4mA |
3.5mA |
10ms |
>10VDC @20mA |
150 |
50mA |
Yes | |
