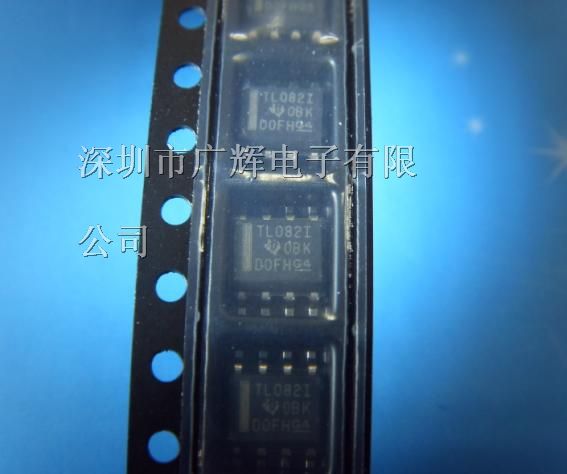

TL082IIDR,TL082I
TI
企业名：深圳市广辉电子有限公司
类型：
电话： 13686868407
手机：13686868407
联系人：陈树辉
QQ：
微信：
邮箱：659974144@qq.com
地址：广东深圳深圳市深南东路金城大厦3-10-A//柜台:深圳市华强北路新华强电子世界Q3B026室
∟ 其他IC(5)
The TL08x JFET-input operational amplifier family is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset voltage temperature coefficient. Offset adjustment and external compensation options are available within the TL08x family.
The C-suffix devices are characterized for operation from 0°C to 70°C. The I-suffix devices are characterized for operation from -40°C to 85°C. The Q-suffix devices are characterized for operation from -40°C to 125°C. The M-suffix devices are characterized for operation over the full military temperature range of -55°C to 125°C
| TL082 | TL081 | TL084 | |
|---|---|---|---|
| Number of Channels | 2 | 1 | 4 |
| Total Supply Voltage (Min) (+5V=5, +/-5V=10) | 7 | 7 | 7 |
| Total Supply Voltage (Max) (+5V=5, +/-5V=10) | 36 | 36 | 36 |
| Iq per channel (Max) (mA) | 2.8 | 2.8 | 2.8 |
| GBW (Typ) (MHz) | 3 | 3 | 3 |
| Slew Rate (Min) (V/us) | 8 | 8 | 8 |
| Slew Rate (Typ) (V/us) | 13 | 13 | 13 |
| Vio (25C) (Max) (mV) | 15 | 15 | 15 |
| Offset Drift (Typ) (uV/C) | 18 | 18 | 18 |
| Vn at 1kHz (Typ) (nV/rtHz) | 18 | 18 | 18 |
| IIB (Max) (pA) | 400 | 400 | 400 |
| CMRR (Min) (dB) | 70 | 70 | 70 |
| Operating Temperature Range (C) | -40 to 85,0 to 70 | -40 to 85,0 to 70 | -40 to 125,-40 to 85,0 to 70 |
| Pin/Package | 8PDIP, 8SO, 8SOIC, 8TSSOP | 8PDIP, 8SO, 8SOIC | 14PDIP, 14SO, 14SOIC, 14TSSOP |
