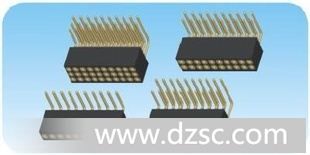

Socket Connectors 1.27mm:SHD   SHS

SPECIFICATIONS:

Insulator:                                PPS

Fiammability:                           UL94V-0

Sleeve:                                    Br*

Contact clip(3 finger):              Beryllium copper

Mating pin:                              0.38 to 0.50mm

Forces:                                    (polished steel gauge 0.41mm)

-Insertion:                               0.5N t*

-Withdrawal:                           0.2N t*

Mechanical life:                        min 500 cycles

Rated cument:                        1A

Contact resistance:                max 10mΩ

Dielectric strength:                 min 500V RMS
