是
BOB
BOB-0103
激光器
X射线
可调谐式
电激励式
自由电子
内光路
光敏器件型
高线性型
*
企业名:广州绿高电子科技有限公司
类型:生产企业
电话: 86 020 36981885
地址:广东广州中国广东广州市全国

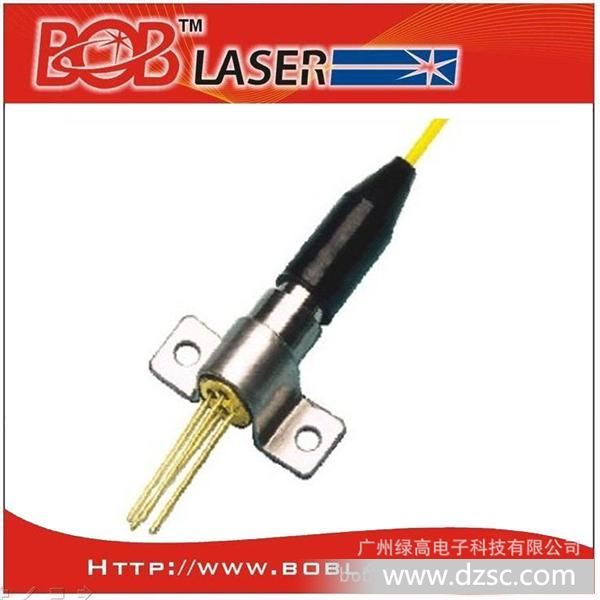

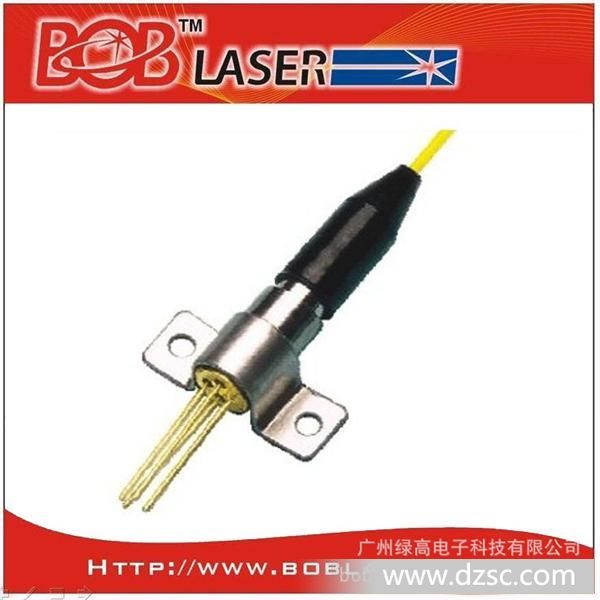

Features特性
》MQW 1550nm DFBLD
》Low threshold current
》High output power
》Built-in lnGaAsP monitor PD
》Wide temperature range operation
(Tc=-45to 85℃)
Absolute maximum ratings
Parameter Symbol Min. Max. Unit Test condition |
Storage temperature Tst -40 100 ℃ - |
Operating temperature TOP -40 85 ℃ - |
Reverse voltage VR 2 V CW |
Soldering temperature/time 260/10 ℃/S - |
Optical & electrical characteristics
Parameter Symbol Min. T*. Max. Unit test condition |
Center wavelength λc 1520 1550 1580 nm - |
Threshold current ith - 10 20 mA CW ,25℃ |
Spectral width △λ - 1 2 nm CW,lth 20mA |
Output power P - 0.8 2.5 mW CW,lth 20mA |
Operating voltage Vop - 1.1 1.5 V CW,lth 20mA |
Rise/Fall time Tr/Tf - 0.3 0.7 nS CW,lth 20mA |
Monitor current lm 0.1 0.4 - mA CW,lth 20MA |
Optical lsolation lso 30 - - db 25℃ |
