商品信息

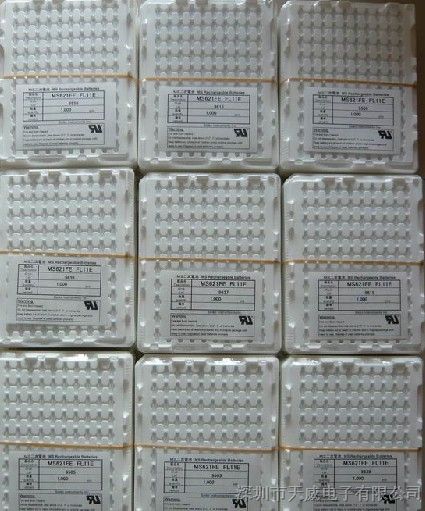

长期现货*原装SII精工，优势供应

外型尺寸：	.（mm）	化学类型：	锂锰电池
标准电压：	3	型号：	MS621FE-FL11E
用途：	电子产品	品牌：	SII
额定容量：	5.5MAH	.：	.

*新到货供应精工（SII）MS621电池MS621FE-FL11E的详细介绍

ms lithium rechargeable battery( ms series <3v t*e> )

general description

sll micro parts ltd. own developed ms(manganese silicon) lithium rechargeable battery addresses the demand most effectively.the battery uses silicon oxide as anode and lithium manganese composite oxide as cathode. as a result, it offers longer cycle-life and highly stable over-discharge characteristics.

features

large discharge capacity:
large discharge capacity for high operational voltage range of 2.0v to 3.3v.
long cycle-life:
over 200 times cycle-life under the charge/discharge condition at 2.0v to 3.3v(d.o.d 100%).
excellent over-discharge characteristics:
continued stable capacity characterisitics after the battery is over-discharged down to 0.0v.
wide range of operating temperature
from -20^oc to 60^oc
if you would like to use beyond the temperature range, please consult with us.
approved product by ul(underwriters laboratories inc.)
ul file no.mh 15628

applications

back up power supply for memory or clock in various electronic equipment e.g. cellular-phones,cordless phones, phs, pagers, memory-cards, fax machines, personal computers, pda, video cameras,di*al cameras, tuners, handy terminals etc.
main power source for *all and slim portable equipment.

specifications

t*e	nominal voltage (v)	charge voltage (standard charge voltage)*6	nominal capacity (mah)*1	internal impedance (ω)*2	standard charge/ discharge current (ma)	maximum discharge/ current (continuous) (ma)*3	cycle life (times)*4		size(mm)		weight (g)
t*e	nominal voltage (v)	charge voltage (standard charge voltage)*6	nominal capacity (mah)*1	internal impedance (ω)*2	standard charge/ discharge current (ma)	maximum discharge/ current (continuous) (ma)*3	100% d.o.d (depth of discharge)*5	20% d.o.d (depth of discharge)*5	diameters	height	weight (g)
ms412f	3	2.8v to 3.3v (3.1v)	1.0	100	0.010	0.10	200	1000	4.8	1.2	0.07
ms518s	3	2.8v to 3.3v(3.1v)	3.4	60	0.010	0.15	100	1000	5.8	1.8	0.13
ms614	3	2.8v to 3.3v(3.3v)	2.3	50	0.025	0.25	200	1000	6.8	1.4	0.17
ms614s	3	2.8v to 3.3v(3.1v)	3.4	80	0.025	0.25	200	1000	6.8	1.4	0.17
ms621f	3	2.8v to 3.3v(3.1v)	5.5	80	0.025	0.25	200	1000	6.8	2.1	0.23
ms920s	3	2.8v to3.3v(3.1v)	11.0	35	0.050	0.80	100	1000	9.5	2.1	0.47

*1nominal capacity indicates t*ical value of capacity whose voltage range is 3.3v to 2.0v,/f t*e and .s t*e 3.1v to 2.0v.
*2internal impedance is measured using ac(alternating current) method at the fully charged state.
*3maximum discharge current indicates the value of current for approximately 50% of nominal capacity.
*4cycle life times indicates the times of charge-discharge repeating for approximately 50% of the capacity value in the spec sheet.
*5100% and 20% are based on nominal capacity.
*6a constant voltage charge is recommended. but due to a limit in charging current,it is necessary to insert a resister to regulate charging current. please contact us for further details.
if a constant current charge is required, please contact us for more information.

hb lithium rechargeable battery

general description

for protecting the global environment, we developed lithium rechargeable battery which allows pb-free reflow soldering (automatic mounting by pb-free solder)
hb414 is the pb-free reflowable lithium rechargeable battery, by adopting highly heat resistant material and precise sealing technology.

hb series features high capacity and long cycle life with possible charging voltage range, which is most suitable for backup use of real time clock and sram etc.

features

pb-free reflowable
*ior heat resistance (260^oc peak) allows reflow soldering by pb-free solder.
wide range of charging voltage :
wide range voltage allows to be used for various applications
high capacity :
ten times higher than capacitor in 0.3mah t*.(charge:3v cut off 1.2v)
long cycle life :
more than 1,000 times charge/discharge cycle(10% d.o.d)
excellent over discharge characteristics
wide range of operating temperature
from -20^oc to 60^oc
if you would like to use beyond the temperature range, please consult with us.
approved product by ul(underwriters laboratories inc.)
ul file mh 15628

applications

power supply back up use for cellular phone, wireless phone, phs, di*al still camera, pda, md player.

specifications

t*e	nominal voltage (v)	charge voltage*4	nominal capacity (voltage range) (mah)	internal impedance (ω)*2	standard charge discharge current (ma)	cycle life (time)1,3	diameter (mm)	height (mm)	weight (g)
hb414	3.0	2.5v to 3.5v	0.3(3.0-1.2) 0.2(2.5-1.2) 0.14(3.0-2.0)	280	0.005	1000 (10% d.o.d) 100 (100% d.o.d)	4.8	1.4	0.07

*1d.o.d.:depth of discharge
*2internal impedance is measured using ac (altering current)method at the fully charged state.
*3cycle life times indicates the times of charge-discharge repeating for approximately 50% of the capacity value in the spec sheet.
*4a constant voltage charge is recommended.but due to a limit in charging current,it is necessary to insert a resister to regulate charging current.please contact us for further details.
if a constant current charge is required, please contact us for more information.
