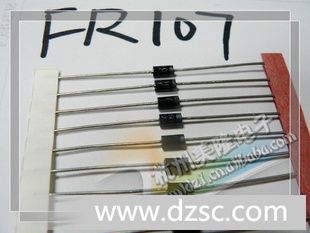

产品名称:1.0A FAST RECOVERY SURFACE MOUNT RE*IFIERS 1.0安培快恢复表面贴装整流器 产品型号:FR107 产品特征: Low forward voltage drop High current capability High reliability High surge current capability
机械数据: Cases:Molded plastic
Epoxy:UL 94V-0 rate flame retardant
Lead:Axial leads,solderable per MIL-STD-202, Method 208 guaranteed
Polarity:Color band denotes cathode end
High temperature soldering guaranteed; 250?C /10 seconds/.375”,(9.5mm)lead Lengths at 5 lbs.,(2.3kg) tension
Weight: 0.34 grams
*大额定值和电气特性: Rating at 25℃ ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%
产品数据: Maximum Repetitive Peak Reverse Voltage VRRM *大反向峰值电压 :1000V
Maximum RMS Voltage VRMS 电压*值 :700V
Maximum DC blocking Voltage VDC *大直流阻断电压 :1000V
Maximum Average Forward Rectified Current .375”(9.5mm) Lead length @TA=55℃ IF(*) *大正向电流 :1.0A
Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Super imposed on Rated Load IFSM *大正向浪涌电流 :30 A
Maximum Instantaneous Forward Voltage @ 1.0A VF *大正向压降 :1.2 V
Maximum Reverse Current at Rated @TA=25℃ IR *大反向漏电流 :5.0μA DC blocking voltage @TA= 100℃ IR *大反向漏电流 :100μA
