VTE18-4P8112
sick
企业名：佛山名扬自动化控制设备有限公司
类型：经销商
电话： 0757-81810377
手机：18927211286
联系人：彭丽
QQ：
邮箱：longzhao2009@126.com
地址：广东佛山佛山市南海区平洲三山基业花园28座
如有需求者请与 At a glance Your benefits
Model Name
VTE18-4P8112
Part No.
6013099

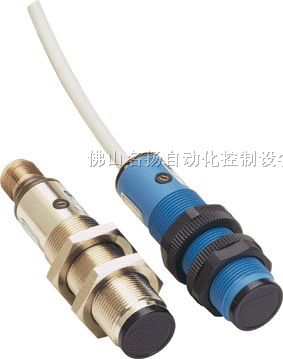

Standard photoelectric proximity sensor in M18 cylindrical housing
Energetic proximity sensor with three scanning distances of 200 m, 400 mm or 800 mm
3-wire technology
Axial or radial optics output
Standardized design enables simple *embly and alignment and simple replacement of the device
Individual devices for various scanning distances
Suitable for signal processing e.g. with AS-i coupling modules or M12 distributor islands
Flexibility in case of restricted installation space
Features
Sensing range max.:
10 mm ... 800 mm 1)
Sensing range:
10 mm ... 700 mm
Housing design (light emission):
straight
Light source:
LED 2)
T*e of light:
Infrared light
Adjustment:
no/fix
Housing length:
63.6 mm
Thread diameter (housing):
M18 x 1
Sensor/detection principle:
Photoelectric proximity sensor, energetic
Light spot (distance):
40 mm (800 mm)
Optical axis:
Axial
1) Object with 90 % reflectance (referred to standard white DIN 5033) 2) Average service life 100,000 h at Ta = +25 °C
Mechanics/electronics
Enclosure rating:
IP 67
Supply voltage:
10 V DC ... 30 V DC 1)
Residual ripple:
≤ 10 % 2)
Power consumption:
≤ 30 mA 3)
Switching output:
PNP, light/dark-switching, Selectable via L/D control wire, open collector 4)
Output current Imax.:
100 mA
Response time:
≤ 2 ms 5)
Switching frequency:
250 Hz with light/dark ratio 1:1
Connection t*e:
Cable, 4-wire 2 m 6)
Cable material:
PVC
Conductor cross-section:
0.14 mm²
Cable diameter:
5 mm
Protection cl*:
III
Circuit protection:
A
B
C
D 7) 8) 9) 10)
Weight:
120 g
Housing material:
Nickel-plated br*
Optics material:
PMMA
Ambient operating temperature:
-25 °C ... 70 °C
Angle of dispersion:
2.8 °
1) Limit values 2) 3) Without load 4) Control wire open: dark-switching D.ON 5) Signal transit time with resistive load 6) Do not bend below 0 °C 7) A = VS connections reverse-polarity protected 8) B = inputs and output reverse-polarity protected 9) C = interference suppression 10) D = outputs overcurrent and short-circuit protected
