ZLQ3H 称重传感器材质合金钢不锈钢

特点及应用

1. 桥式双剪切梁结构

2. 浮动承力结构，可自动复位，*侧向能力和*冲击能力强

3. 安装方便，互换性能好

4. *护等级：IP67/ IP68，可在较恶劣环境下使用

5. 适用于各种电子汽车衡，轨道衡，料斗秤等

Characteristic and application

1. Bridge t*e,double shear beam structure

2. Floating loading ,self-resetting,strong anti- lateral and anti-impact ability

3. Convientily to install , good interchangeability

4. Protecting cl*: IP67, working under comparatively adverse circumstance

5. Suitable for electronic truck scale,electronic railroad scale and hopper scale,ect

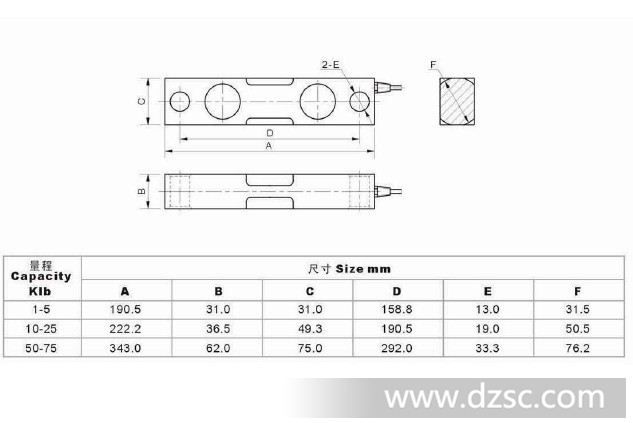

外形尺寸图

技术参数Technical specifications		技术参数Technical specifications
电气特性Electrical specifications		负荷特性Charateristic specifications
灵敏度Rated output（mv/v）	2.0（3.0）&plu*n;0.01	额定载荷Rated capacity	50-100000 kg
*点输出Zero balance	&plu*n;1.0% FS	综合精度Comprehensive precive	&plu*n;0.025%FS
输入电阻Input Risistance	750&plu*n;15	非线性Nonlinearity	&plu*n;0.02%FS
输出电阻Output Risistance	700&plu*n;2	重复性Repeatability	&plu*n;0.015%FS
*缘电阻Insulation Risistance	≥5000MΩ	滞后性Hysteresis	&plu*n;0.02%FS
推荐电压Recommendation excitation voltage	10V(DC)	蠕变Creep(30minutes)	&plu*n;0.02%FS
*大电压Max excitation voltage	15V(DC)	回*Returning to zero	&plu*n;0.02%FS
温度特性Temperature characterisitic		机械特性Physical characteristic
温度补偿范围Compensated temperature range	-10℃-70℃	*载荷Safe loading range	120%FS
工作温度范围Operating temperature	-20℃-70℃	*限载荷Limiting load range	150%FS
*点输出温度影响Temperature effect on zero	&plu*n;0.02%FS/10℃	*护等级Protection rank	IP67/IP68
灵敏度输出温度影响Temperature effect on output	&plu*n;0.02%FS/10℃	电缆长度Cable lenth	5--10m
