特征:

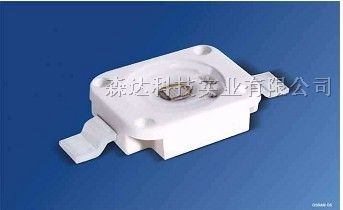

•feature of the device: point lightsource with high luminous efficiency and low space

波长:
•wavelength: 455 nm (deep blue), 470 nm (blue), 528 nm (true green)

视角:
•viewing angle: Lambertian Emitter (120°)

工艺:
•technology: ThinGaN

光效:
•optical efficiency: 17 lm/W (deep blue), 24 lm/W (blue), 86 lm/W (true green)
at 100 mA

参数分类:
•grouping parameter: luminous flux, wavelength

装配方式:
•assembly methods: suitable for all SMT assembly methods

焊接方式:
•soldering methods: IR reflow soldering
•preconditioning: acc. to JEDEC Level 4

卷带包装:
•taping: 24-mm tape with 800/reel, ø180 mm
•ESD-withstand voltage: up to 2 kV acc. to JESD22-A114-B

应用范围:

Applications

电视背光源
•TFT backlighting for large area TV applications

液晶显示器背光源
•backlighting (LCD, switches, displays, illuminated advertising, general lighting)

汽车仪表背光源
•interior automotive lighting (e.g. dashboard backlighting, etc.)

取代白炽灯
•substitution of micro incandescent lamps

标志灯,信号灯
•marker lights (e.g. steps, exit ways, etc.)

红绿蓝闪光灯
•RGB - strobe light

信号和标志灯具
•signal and symbol luminaire

扫描仪
•scanners
