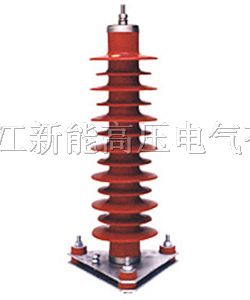

HY5WZ-51/134
新能
企业名：浙江新能高压电气有限公司
类型：生产企业
电话： 0577-57119430
手机：13282451018
联系人：张小姐
QQ：
邮箱：xngydq@163.com
地址：浙江温州柳市坭前工业区
HY5WZ-51/134电站型避雷器用于保护发电厂、变电站的交流电气设备免受大气过电压和操作电压的损坏。
部分避雷器型号：
HY1.5W-0.28/1.3;HY5WD-4/9.5;HY1.5W-0.5/2.6;HY5WD-8/18.7;HY5WD-13.5/31;HY5WD-17.5/40；；HY5WS-3.8/15;HY5WD-20/45;HY5WS-5/15;HY5WD-23/51;HY5WS-7.6/30;HY2.5WD-4/9.5；HY5WS-10/30;HY2.5WD-8/18.7;HY5WS-12.7/50;HY2.5WD-13.5/31;HY5WS-17/50;HY1.5WD-2.4/6;
HY1.5WD-5/12;HY1.5WD-8/19;HY5WR-5/13.5;HY5WR-10/27;HY5WR-17/45;HY5WT-42/120; HY5WR-51/134;HY5WT-41/115;HY5WR-841/221;HY5WT-84/240;HY5WR-90/236;HY5WT-82/230; HY5WR-51/134;HY10WT-42/120;HY5WR-54/134;HY10WT-41/115;HY10WT-84/240;HY5W-108/281; HY10WT-82/230;HY10WZ-51/134;HY10WZ-54/134;HY10W-90/235;HY1.5W-30/80;HY10W-96/250; HY1.5W-55/132;HY10W-100/260;HY1.5W-60/144;HY10W-108/281;HY1.5W-72/186;HY10W-192/500;
HY1.5W-73/200;HY10W-200/520;HY1.5W-144/320;HY10W-216/562;HY1.5W-146/320;Y5WS-5/15; HY5WZ-5/13.5;Y5WS-12/35.8;HY5WZ-10/27;Y5WS-10/30;HY5WZ-17/45;Y5WS-15/45.6;HY5WZ-51/134; Y5WS-17/50 HY5WZ-54/134;Y5WZ-5/13.5;HY5W-84/221;Y5WZ-10/27;HY5W-90/235;Y5WZ-17/45;HY5W-100/260; Y5WZ-51/134 Y5WZ-54/134;Y5W-84/221;Y5W-90/235;Y5W-100/260;Y5W-108/281;Y10WZ-51/134;Y10WZ-54/134;
Y10W-90/235;Y10W-96/250;Y10W-100/260;Y10W-108/281;Y10W-192/500;Y10W-200/520;Y10W-216/562;
|
类别 |
避雷器型号 |
避雷器额定电压(kV) |
系统标称电压(kV) |
持续运行电压(kV) |
直流1mA参考电压(不小于)(kV) |
0.75倍直流参考电压下漏流(不大于)(μA) |
陡坡冲击电流(不大于)(kV) |
雷电冲击电流(不大于)(kV) |
操作冲击残压(不大于)(kV) |
2mS方波通流容量(电流A、18次) |
4/10μS冲击电流(kV) |
|
低压 |
H(Y)1.5W-0.28/1.30 |
0.28 |
0.22 |
0.24 |
0.60 |
30 |
- |
1.30 |
- |
75 |
25 |
|
H(Y)1.5W-0.5/2.60 |
0.50 |
0.38 |
0.42 |
1.20 |
30 |
- |
2.60 |
- |
75 |
25 | |
|
配电(S) |
H(Y)5WS-5/15 |
5 |
3 |
4.0 |
7.5 |
30 |
17.3 |
15.0 |
12.8 |
120 |
65 |
|
H(Y)5WS-10/30 |
10 |
6 |
8.0 |
16.0 |
30 |
34.6 |
30.0 |
25.6 |
120 |
65 | |
|
H(Y)5WS-17/50 |
17 |
10 |
13.6 |
25.0 |
30 |
57.5 |
50.0 |
42.5 |
120 |
65 | |
|
电站(Z) |
H(Y)5WZ-5/13.5 |
5 |
3 |
4.0 |
7.2 |
30 |
15.5 |
13.5 |
11.5 |
200 |
65 |
|
H(Y)5WZ-10/27 |
10 |
6 |
8.0 |
14.4 |
30 |
31.0 |
27.0 |
23.0 |
200 |
65 | |
|
H(Y)5WZ-17/45 |
17 |
10 |
13.6 |
24.0 |
30 |
51.8 |
45.0 |
38.3 |
200 |
65 | |
|
H(Y)5WZ-51/134(130,125) |
51 |
35 |
40.8 |
73.0 |
40 |
154(150,154) |
134(130,125) |
114(112,110) |
400 |
65 100 | |
|
H(Y)5WZ-52.7/134(130,125) |
52.7 |
35 |
42.2 |
73.0 |
40 |
400 | |||||
|
H(Y)5WZ-54/134(130,125) |
54 |
35 |
43.2 |
74.0 |
40 |
400 | |||||
|
H(Y)10WZ-100/260 |
100 |
110 |
80 |
145 |
50 |
299 |
260 |
221 |
600 |
100 | |
|
H(Y)10WZ-102/265 |
102 |
110 |
81.6 |
148 |
50 |
305 |
265 |
226 |
600 |
100 | |
|
H(Y)10WZ-108/281 |
108 |
110 |
86.4 |
157 |
50 |
332 |
281 |
239 |
600 |
100 | |
|
发电机(D) |
H(Y)5WD-4/9.5 |
*4 |
3.15 |
3.2 |
57 |
40 |
10.7 |
9.5 |
7.6 |
400 |
65 |
|
H(Y)5WD-8/18.7 |
*8 |
6.3 |
6.3 |
11.2 |
40 |
21.0 |
18.7 |
15.0 |
400 |
65 | |
|
H(Y)5WD-13/31 |
*13.5 |
10.5 |
10.5 |
18.6 |
40 |
34.7 |
31.0 |
25.0 |
400 |
65 | |
|
H(Y)5WD-17.5/10 |
*17.5 |
13.8 |
13.8 |
24.4 |
40 |
44.8 |
40.0 |
32.0 |
400 |
65 | |
|
H(Y)5WD-20/45 |
*20 |
15.8 |
15.8 |
28.0 |
40 |
50.4 |
45.0 |
36.0 |
400 |
65 | |
|
H(Y)5WD-23/51 |
*23 |
18.0 |
18.0 |
31.9 |
40 |
57.2 |
51.0 |
40.8 |
400 |
65 | |
|
H(Y)5WD-25/56.2 |
*25 |
20.0 |
20.0 |
35.4 |
40 |
62.9 |
56.2 |
45.0 |
400 |
65 | |
|
旋转电机(D) |
H(Y)2.5WD-4/9.5 |
*4 |
31.5 |
3.2 |
5.7 |
30 |
10.7 |
9.5 |
7.6 |
200 |
65 |
|
H(Y)2.5WD-8/18.7 |
*8 |
6.3 |
6.3 |
11.2 |
30 |
21.0 |
18.7 |
15.0 |
200 |
65 | |
|
H(Y)2.5WD-13.5/31 |
*13.5 |
10.5 |
10.5 |
18.6 |
30 |
34.7 |
31.0 |
25.0 |
200 |
65 | |
|
并联补偿电容器(R) |
H(Y)5WR-8/13.5 |
5 |
3 |
4.0 |
7.2 |
40 |
- |
13.5 |
10.5 |
400 |
65
65-100 |
|
H(Y)5WR-10/27 |
10 |
6 |
8.0 |
14.4 |
40 |
27.0 |
21.0 |
400 | |||
|
H(Y)5WR-17/44 |
17 |
10 |
13.6 |
24.0 |
50 |
46.0 |
35.0 |
400-1200 | |||
|
H(Y)5WR-48/134(130,125) |
48 |
35 |
38.1 |
73.0 |
50 |
- |
134(130,125) |
105 |
400-1200 |
65-100 | |
|
H(Y)5WR-51/134(130,125) |
51 |
35 |
40.8 |
73.0 |
50 |
105 |
400-1200 |
65-100 | |||
|
H(Y)5WR-52.7/134(130,125) |
52.7 |
35 |
42.2 |
73.0 |
50 |
105 |
400-1200 |
65-100 | |||
|
H(Y)5WR-54/134(130,125) |
54 |
35 |
43.2 |
73.0 |
50 |
105 |
400-1200 |
65-100 | |||
|
变压器中性点 |
H(Y)1.5W-55/132 |
55 |
110 |
44 |
79 |
40 |
- |
132 |
126 |
400 |
65 |
|
H(Y)1.5W-60/144 |
60 |
110 |
48 |
85 |
40 |
144 |
135 |
400 |
65 | ||
|
H(Y)1.5W-72/186 |
72 |
110 |
58 |
103 |
40 |
186 |
174 |
400 |
65 | ||
|
H(Y)1.5W-73/200 |
73 |
110 |
58.4 |
105 |
40 |
200 |
165 |
400 |
65 | ||
|
电气化铁道(T) |
H(Y)5WT-42/120 |
42 |
27.5 |
34 |
65 |
40 |
138 |
120 |
98 |
400 |
65 |
|
H(Y)5WT-84/240 |
84 |
55 |
68 |
130 |
40 |
276 |
240 |
196 |
400 |
65 | |
|
H(Y)10WT-42/120 |
42 |
27.5 |
34 |
65 |
40 |
138 |
120 |
98 |
400 |
65 | |
|
H(Y)10WT-84/240 |
84 |
55 |
68 |
130 |
40 |
276 |
240 |
196 |
400 |
65 | |
|
线路(X) |
H(Y)10WX-17/60 |
17 |
10 |
13.6 |
25 |
40 |
70 |
60 |
- |
400 |
65 |
|
H(Y)10WX-51/220 |
51 |
35 |
40.8 |
73 |
40 |
240 |
220 |
- |
400 |
65 | |
|
H(Y)10WX-51/170 |
51 |
35 |
40.8 |
73 |
40 |
190 |
120 |
- |
400 |
65 |
