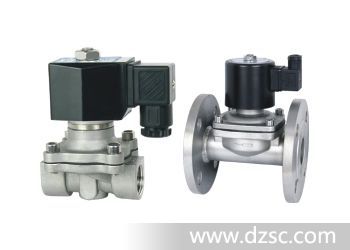

POLOVO 大口径直动式不锈钢电磁阀 特点 二位二通常闭型电磁阀,断电关闭,通电打开 阀体材质为铜,SS304不锈钢,SS316不锈钢 *大耐压力16kgf/cm/2 环境温度:0℃~65℃ 产品为系列化生产,体积小,流量大,适用范围广 按阀上所标流向箭头,可任意安装;为增强使用寿命,*好线圈向上,水平安装 电压:AC220V/230V/240V/110V/24V 50/60HZ DC24V/12V +10%到-10%允许波动 DN25以下电磁阀可选配德国NASS线圈 常规备货:AC220V/230V/240V 50/60HZ、DC24V膜片、密封件,可采用*R、VITON、EPDM等多种,以适用不同流体的开关控制 ◇大口径直动式不锈钢电磁阀 流向图 ![](https://www.dzsc.com/uploadfile/company/327909/c3201008101727362094357.jpg) ◇大口径直动式不锈钢电磁阀 *件图 ![](https://www.dzsc.com/uploadfile/company/327909/c4201008101727362094357.jpg) ◇大口径直动式不锈钢电磁阀详细规格表 接管 口径 | 流量 通径 mm | CV值 | 压力差(Kgf/cm2) | *大 流体 温度 | 线圈 | 功率 | 外行尺寸 长×宽×高 A×B×H | 重量KG | *小压力 | *大工作压力 | 空气 瓦斯 | 水、热 水液体 | 轻油 | F 级 | VA | W | AC | DC | AC | DC | AC | DC | 配置 | AC220V | DC24V | 3/8” | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 69×57×106 | 0.8 | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 69×57×106 | 0.8 | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 69×57×106 | 0.8 | 16 | 4.8 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 69×57×106 | 0.8 | 1/2” | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 69×57×106 | 0.85 | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 69×57×106 | 0.85 | 16 | 4.8 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 69×57×106 | 0.85 | 16 | 4.8 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 69×57×106 | 0.85 | 3/4” | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 73×57×114 | 1.1 | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 73×57×114 | 1.1 | 20 | 7.6 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 73×57×114 | 1.1 | 20 | 7.6 | 0 | | | 3 | 3 | | | 120 | D | 33 | 20 | 73×57×114 | 1.1 | 1” | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 99×77×121 | 1.45 | 25 | 12 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 33 | 20 | 99×77×121 | 1.45 | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 99×77×121 | 1.45 | 25 | 12 | 0 | 10 | 6 | 3 | 3 | | | 120 | D | 33 | 20 | 99×77×121 | 1.45 | 11/4” | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 112×86.5×150 | 2.3 | 32 | 24 | 0 | 10 | 6 | 10 | | | | 120 | D | 70 | 40 | 112×86.5×150 | 2.3 | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 7 | 120 | D | 70 | 40 | 112×86.5×150 | 2.3 | 11/2” | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 123×94×160 | 2.9 | 40 | 29 | 0 | 10 | 6 | 10 | | | | 120 | D | 70 | 40 | 123×94×160 | 2.9 | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | 7 | 120 | D | 70 | 40 | 123×94×160 | 2.9 | 2” | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 168×123×183 | 4.8 | 50 | 48 | 0 | 10 | | 10 | 6 | | | 120 | D | 70 | 40 | 168×123×183 | 4.8 | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 168×123×183 | 4.8 | 法兰4孔连接 | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 33 | 20 | 140×115×160 | 2.9 | 25 | 12 | 0 | 10 | 6 | 10 | | | | 120 | D | 33 | 20 | 140×115×160 | 2.9 | 25 | 12 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 33 | 20 | 140×115×160 | 2.9 | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 152×135×215 | 5.1 | 32 | 24 | 0 | 10 | 6 | 10 | | | | 120 | D | 70 | 40 | 152×135×215 | 5.1 | 32 | 24 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 152×135×215 | 5.1 | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | | 80 | D | 70 | 40 | 152×145×215 | 6.1 | 40 | 29 | 0 | 10 | 6 | 10 | | | | 120 | D | 70 | 40 | 152×145×215 | 6.1 | 40 | 29 | 0 | 10 | 6 | 10 | 6 | 7 | | 120 | D | 70 | 40 | 152×145×215 | 6.1 | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 80 | D | 70 | 40 | 195×160×220 | 8.2 | 50 | 48 | 0 | 10 | 6 | 10 | 6 | | | 120 | D | 70 | 40 | 195×160×220 | 8.2 | 50 | 48 | 0 | 10 | 6 | 10 | 6 | 7 | 4 | 120 | D | 70 | 40 | 195×160×220 | 8.2 | |
