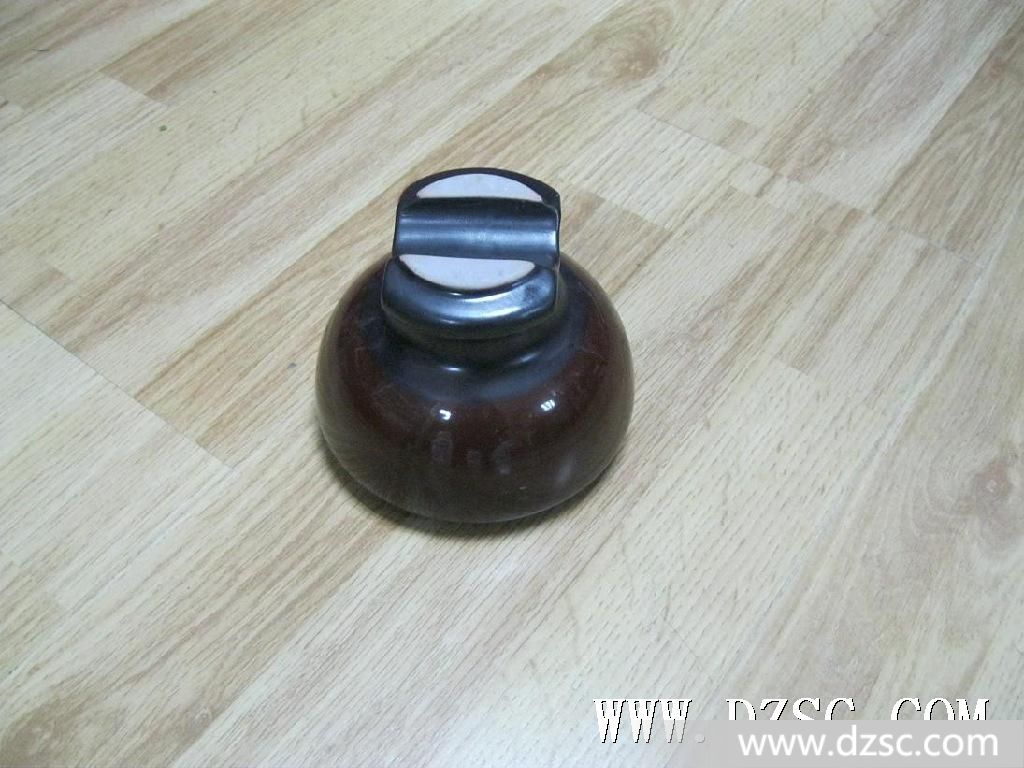

工厂代号Cat.No | 55-5 |
图号Fig | 4 |
英标等级Cl* BS | PG15-M |
主要尺寸 Main Dimensions mm | H | 123.9 |
h | 50.8 |
D | 177.8 |
d | 25.4 |
R1 | 25.4 |
R2 | 14.3 |
额定电压Nominal Voltge/KV | 15 |
爬电距离Creepage Distance/mm | 305 |
工频击穿电压Power-trequency puncture voltage(kv) | |
闪络电压（不小于） Minimum Flashover Voltage | 工频 Power-frequency | 干Dry/(kV) | 85 |
湿Wet/(KV) | 45 |
50%临界冲击 50% Impulse | 正级性Positive/KV | 140 |
负*性Negative/KV | 170 |
耐受电压 Withstand Voltage | 1分钟工频 Oneminutepower-frequency | 干耐受Dry/kV | |
湿耐受Wet/KV | |
冲击Impulse/kV | |
无线电干扰电压 Radio-Influence-Voltage Data | 对地实验Test Voltage to Ground/KV | 15 |
1000千赫*大Maximum RIV at 1000KHz/uV | 8000 |
*弯强度Cantilever Failing load (KN) | 3000 |
重量Weight/kg | 3.38 |
