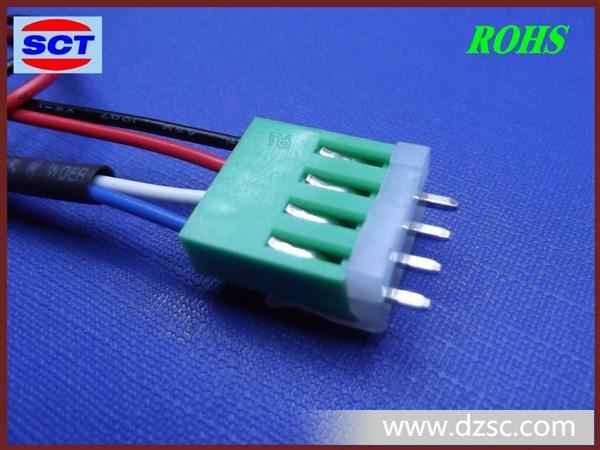

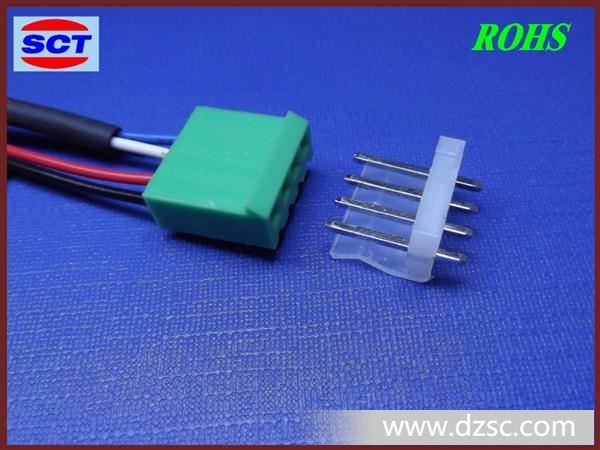

MOLEX3.96 4P 绿色 端子连接线 电脑连接线 电源连接线

Specifications :

Current Rating :7A AC,DC

Voltage Rating : 250V AC,DC

Temperature Range : -25 deg C ~ 85 deg C

Contact Resistance : 20m Omega Max.

Insulation Resistance : 1000M Omega Min.

Withstanding Voltage : 1500V AC/minute

Housing

Part No:S*3960H/HA-XXP

Poles:2-20P.

Material:Nylon66 UL94V-2

Packing Q'TY:1000pcs/bag

Mates With S*3960T Series Terminal

Terminal

Part No:S*3960T

Thickness:0.25mm

Material:Phosphor Br*

Finish:Tin Plated

Wire Range:AWG#18-#24

Insulation O.D. : 2.80mm ( Max.)

Q'TY:5,000pcs/reel

Mates With S*3960H- Series Housing

Wafer

Part No:S*3960WV/WR-XXP

Poles:2-20P

Material:Nylon66 UL94V-2

Pin:Br*,Tin Plated

Packing Q'TY:1000pcs/box

Mates With S*3960H- Series Housing

Part No:S*3960WVA/WRA-XXP

Poles:2-20P

Material:Nylon66 UL94V-2

Pin:Br*,Tin Plated

Packing Q'TY:1000pcs/box

Mates With S*3960H- Series Housing

企业名：深圳市森康达电子有限公司

类型：生产加工

电话： 0755-27367129

联系人：刘金钰

地址：广东深圳82区新湖路华丰科技园A座
