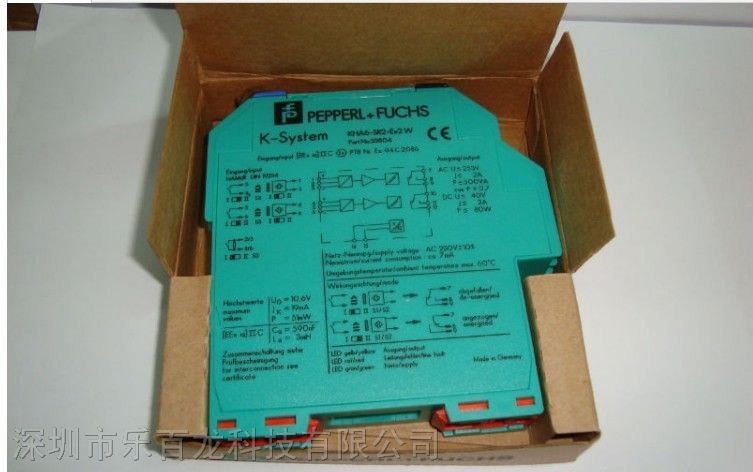

KFD2-SR2-EX2.W
倍加福
企业名：深圳乐百龙自动化设备有限公司
类型：贸易/代理/分销
电话：
0755-23956352
0755-23956352
手机：18898759426
13590238639
联系人：王小姐/郭小姐
QQ：
微信：
邮箱：2254625939@qq.com
地址：广东深圳深圳市龙华新区民治大道优城商务大厦北区AB座1611
KFD0-CC-1
| General specifications | ||
| Signal type | Analog input | |
| Supply | ||
| Rated voltage | 12 ... 35 V DC loop powered | |
| Power loss | 0.4 W | |
| Input | ||
| Connection | terminals 1+, 2- | |
| Current range | 0 ... 20 mA , load ≤ 50 Ω | |
| Voltage range | 0 ... 10 V , load ≥ 100 kΩ | |
| Output | ||
| Connection | terminals 9+, 8- | |
| Load | (U -12 V) / 0.02 A | |
| Current output | 4 ... 20 mA , limited to ≤ 35 mA | |
| Fault signal | downscaling ≤ 3 mA | |
| Transfer characteristics | ||
| Rise time | 250 ms | |
| Directive conformity | ||
| Electromagnetic compatibility | ||
| Directive 2004/108/EC | EN 61326-1:2006 | |
| Conformity | ||
| Insulation coordination | EN 50178 | |
| Electrical isolation | EN 50178 | |
| Electromagnetic compatibility | NE 21 | |
| Protection degree | IEC 60529 | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Mechanical specifications | ||
| Protection degree | IP20 | |
| Mass | approx. 100 g | |
| Dimensions | 20 x 119 x 115 mm (0.8 x 4.7 x 4.5 in) , housing type B2 | |
