Lattice usb下载线
*下载兼容性
2. 无需单独安装驱动,直接支持ispLever6.x/7.x/cl*ic版本,ispVM各种版本
3. 支持lattice全系列FPGA,SC/SCM/XP/XP2/EC/ECP2/ECP2M/MachXO
4. 支持lattice全系列CPLD, 1000/2000/4000 系列
5. U*标准B型接口,使用标准U*连接线即可连接PC
6. U*供电,无需外部供电支持
7. 支持JTAG, internal FLASH,SPI FLASH等编程模式
8. 10针分离镀金插针式接口,可支持不同目标板接口

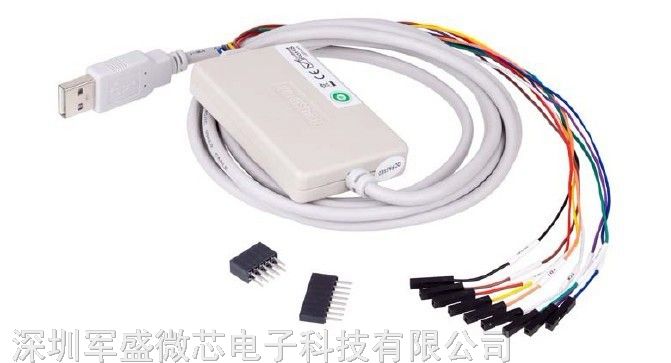

(下载线示意图)
Lattice ispDOWNLOAD® Cable products are the hardware connection for in-system programming of all Lattice devices. After completion of the logic design and creation of a programming file with the Lattice Diamond®, ispLEVER® Cl*ic or PAC-Designer® software, the Lattice Diamond Programmer, or Lattice's ispVM™ System software is used to control the programming of devices directly on the PC board. No additional components are required to program a device.
1. After you complete your logic design and create a programming file with the Lattice Diamond/ispLEVER development tools, you can use ispVM™ System software or Diamond Programmer to program devices on your board. The ispVM System/Diamond Programmer software automatically generates the appropriate programming commands, programming addresses and programming data based on information stored in the programming file and parameters you set in ispVM/Diamond Programmer. Programming signals are then generated from the U* or parallel port of a PC and directed through the ispDOWNLOAD Cable to the device. No additional components are required for programming.
2. 出货清单
1. 下载适配器1个
2. U* A-B型连接线1条
3. 75公分10针下载线1条
