NI15-P30SR-AP6X 电感式传感器，电感式传感器价格，图尔克，TURCK

                                                                                                                       双路导线输入（轴向，径向）

                                                                                                                        M30 x 1.5圆柱螺纹

                                                                                                                       塑料, ABS

                                                                                                                       3线直流, 10…30 VDC

                                                                                                                        常开，pnp输出

                                                                                                                       接线盒

                                                                                                                    接线图

      型号                                                     NI15-P30SR-AP6X
     货号                                                      16117
                                                                                                                    功能原理

     额定工作距离Sn                                                15  mm                                                 电感式传感器通过高频交流电磁场以无磨损和
      安装方                                                   非齐平                                                     非接触的方式检测 金属物体。对普通传感器而
      实际测量范围                                                 ð (0,81 x Sn) mm                                       言，磁场由绕在铁氧体芯线圈上的LC振荡电路
     修正系数                                                   St37 = 1, V2A = 0.7, Ms = 0.4, Cu = 0.3, Al = 0         产生。
      重复精度                                                   ð 2 %
     温度漂移                                                    ð &plu*n; 10 %
     磁滞                                                     3…15
     环境温度                                                   -25… 70

      工作电压                                                   10…30
      余波                                                     ð 10 % Uss

      直流额定工作电流                                               ð 200 mA
      空载电流I0                                                 ð 15 mA

     漏电流                                                     ð 0.1 mA
     额定*缘电压                                                  ð 0.5 kV
     短路保护                                                   是/ 循环
     压降在Ie                                                   ð  1.8 V

      断路/反*性保护                                              是/ 是
      输出性能                                                  3线, 常开触点, PNP
     开关频率                                                    ð  0.5  kHz

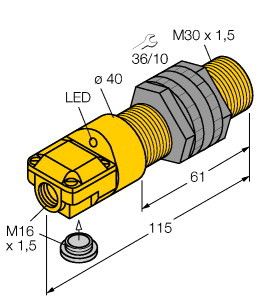

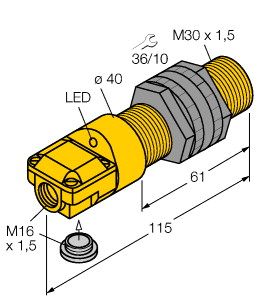

     设计                                                      圆柱螺纹, M30 x 1.5
      尺寸                                                     115
     外壳材料                                                   塑料, ABS
     感应面材料                                                  塑料, ABS
     螺母外壳的固定扭矩                                              5 Nm
     连接                                                     接线端子
     夹紧能力                                                    ð 2.5 mm2

      *震动性                                                  55 Hz (1 mm)
      *冲击性                                                  30  g (11 ms)
      *护等级                                                   IP67

     开关状态指示                                                  LED指示灯 黄
      可供货                                                    电缆*水接头，*水塞
