BSS-*H
美国Amecells
企业名:秦合源科技有限公司
类型:经销商
电话: 0755-86640413
手机:13537810536
联系人:蒋 生
邮箱:qhykj@qq.com
地址:广东深圳南山区南新路向南海德大厦A座
产品简介INTRODU*ION:
S型传感器;通过CMC、PA;优质不锈钢材质;全密封焊接;安装简便、快速 ,稳定*;适用于材料试验机、配料秤、搅拌站和皮带秤等;
主要特点Features:
S型传感器
优质不锈钢材质
全密封焊接
安装简便、快速 ,稳定*
适用于材料试验机、配料秤、搅拌站和皮带秤等

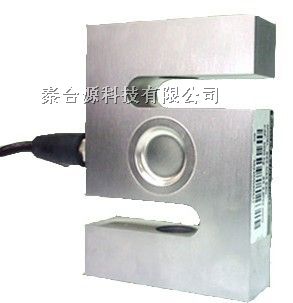

S-T*e load cell
Senior aluminum
Easy to install, stabile & reliable
Suitable for tension measurement, batching systems, industrial scales and package systems, etc.
量程Capacities:
100kg, 200kg, 250kg, 300kg, 500kg, 750kg, 1000kg1500kg, 2000kg, 2500kg, 3000kg, 5000kg
技术参数Specification:
额定输出 |
Rated Output |
2.0mV/V ±0.1% |
*点平衡 |
Zero Balance |
±1% of rated output |
蠕变 |
Creep after 30 minutes |
±0.03% of rated output |
非线性 |
Nonlinearity |
±0.03% of rated output |
滞后 |
Hysteresis |
±0.03% of rated output |
重复性 |
Repeatability |
±0.03% of rated output |
灵敏度温漂 |
Temp. effect on output |
≤0.002% of applied output/ºC |
*点温漂 |
Temp. effect on zero |
≤0.002% of rated output/ºC |
可用温度范围 |
Safe Temp. Range |
-10ºC to + 70ºC |
温度补偿范围 |
Temp. Compensated |
-10ºC to + 40ºC |
*载荷 |
Safe Overload |
150% |
输入阻* |
Input Impedance |
387 ohm ± 20 ohm |
输出阻* |
Output Impedance |
350 ohm ± 5 ohm |
*缘阻* |
Insulation Resistance |
≥5000 M ohm (50V DC) |
推荐激励电压 |
Rated Excitation |
10V DC/AC |
*大激励电压 |
Maximum Excitation |
15V DC/AC |
导线长度 |
Cable Length |
6m |
导线颜色 |
Cable Color Code |
Red(+E) Black(-E) Green(+S) White(-S) |
