是
发光二*管
是
OSRAM/欧司朗
LCW W5AP
硅(Si)
企业名:深圳万胜威节能科技有限公司
类型:经销商
电话:
手机:18923460326
联系人:伍淑东
地址:广东深圳中国 广东 深圳市宝安区 福永街道金域豪庭12栋2座3F
LCW W5AP

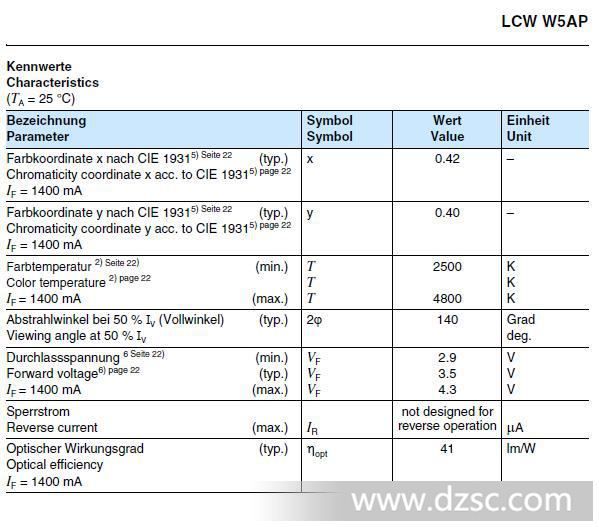

Features
•package:dark SMD package, colorless clear silicone resin, silicone lense; chip level conversion
•t*ical Luminous Flux:203 lm at1400mA (3500 K)
•feature of the device:point lightsource with high luminous efficiency and low space
•color temperature:2500 K to 4800 K
•color reproduction index:80
•viewing angle:140°
•technology:ThinGaN®
•optical efficiency:41 lm/W (3500 K)

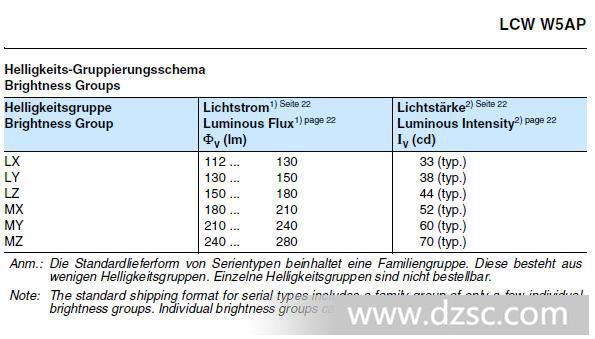

•grouping parameter:luminous flux, color coordinates
•*embly methods:suitable for all SMT *embly methods
•soldering methods:IR reflow soldering
•preconditioning:acc. to JEDEC Level 2
•taping:24 mm tape with 200/reel, ø180 mm
•*D-withstand voltage:up to 2 kV acc. toJ*D22-A114-D
•Superior Corrosion Robustness:details see page 15
应用范围:
Applications
汽车内部和外部照明
•exterior and interior automotive lighting (e.g. day time light)
手电筒
•Flashlight
背光源
•backlighting (illuminated advertising, general lighting)
阅读灯
•reading lamps (aircraft, car, bus)
•retrofits where space is limited
户内外照明
•indoor and outdoor commercial and residential architectural lighting
聚光灯
•spotlights
玻璃柜展示灯
•gl* cabinet lighting
信号灯
•signal and symbol luminaire for orientation
标志灯
•marker lights (e.g. steps, exit ways, etc.)
暖白色温分级代码:
2700K | 4U | 5U | 6U | 7U | 8U | 9U |
4V | 5V | 6V | 7V | 8V | 9V | |
4W | 5W | 6W | 7W | 8W | 9W | |
4X | 5X | 6X | 7X | 8X | 9X |
3000K | 4R | 5R | 6R | 7R | 8R | 9R |
4S | 5S | 6S | 7S | 8S | 9S | |
4T | 5T | 6T | 7T | 8T | 9T |
3500K | 4O | 5O | 6O | 7O | 8O | 9O |
4P | 5P | 6P | 7P | 8P | 9P | |
4Q | 5Q | 6Q | 7Q | 8Q | 9Q |
4000K | 4L | 5L | 6L | 7L | 8L |
|
4M | 5M | 6M | 7M | 8M |
| |
4N | 5N | 6N | 7N | 8N |
|
4500K | 4J | 5J | 6J | 7J | 8J |
|
4K | 5K | 6K | 7K | 8K |
|
