LA W5SM, LR W5SM, LY W5SM

产品特点

Features

封装：

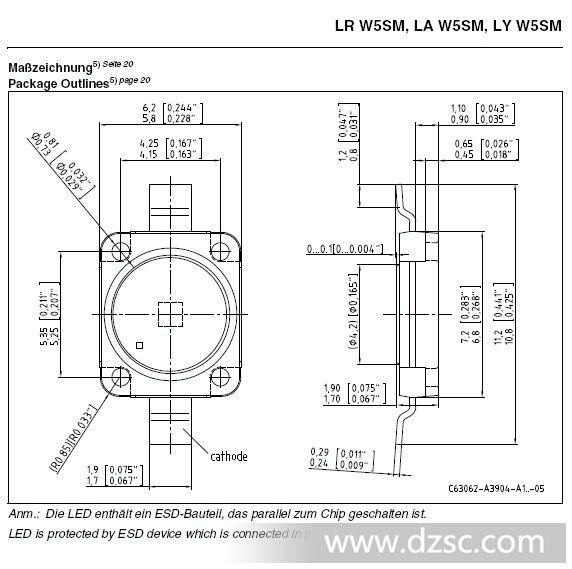

•package:white SMD package, colorless clear silicone

典型光通量：

•t*ical Luminous Flux:54 lm (red); 66 lm (amber); 45 lm (yellow) at 400 mA and up to 115 lm (red); 126 lm (amber); 93 lm (yellow) at 1A

•feature of the device:point lightsource with high luminous efficiency and low space

波长：

•wavelength:625 nm (red),617 nm (amber),590 nm (yellow)

视角：

•viewing angle:Lambertian Emitter (120°)

•technology:Thinfilm InGaAlP

光效：

•optical efficiency:65 lm/W (red),86 lm/W(amber), 68 lm/W (yellow) at 100 mA

参数分组：

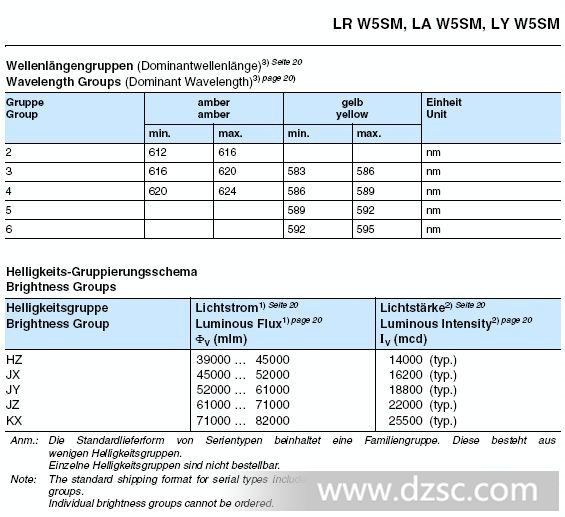

•grouping parameter:luminous flux, wavelength

装配方法：

•*embly methods:suitable for SMT *embly methods

焊接方法：

•soldering methods:reflow soldering

•preconditioning:acc. to JEDEC Level 2

卷带包装：800pcs/reel

•taping:24-mm tape with 800/reel, ø180 mm

•*D-withstand voltage:up to 8 kV acc. to J*D22-A114-D

•Superior Corrosion Robustness:details see page 13

应用范围

Applications

交通信号灯

•traffic signaling

背光照明（广告照明、一般照明）

•backlighting (illuminated advertising, general lighting)

汽车内部、外部照明，如仪表板背光灯

•Interior and exterior automotive lighting e.g. dashboard backlighting, rear combination lamp (RCL)

替代微白炽灯

•substitution of micro incandescent lamps

便携式手提灯（如自行车灯）

•portable light souce (e. g. bicycle)

装饰灯

•decorative and entertainment lighting (incl. fiber optic illumination)

信号灯、标志灯

•signal and symbol luminaire for orientation

楼道、出口标志灯

•marker lights (e.g. steps, exit ways, etc.)

室内室外广告照明灯

•indoor and outdoor commercial and residential architectural lighting

液晶背光源

•LCD backlighting
