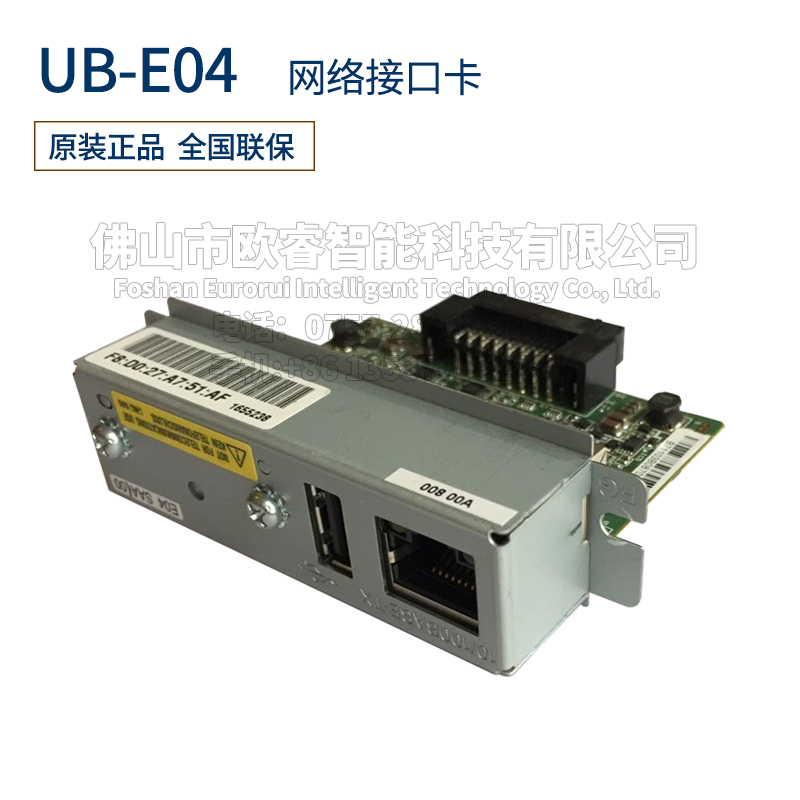

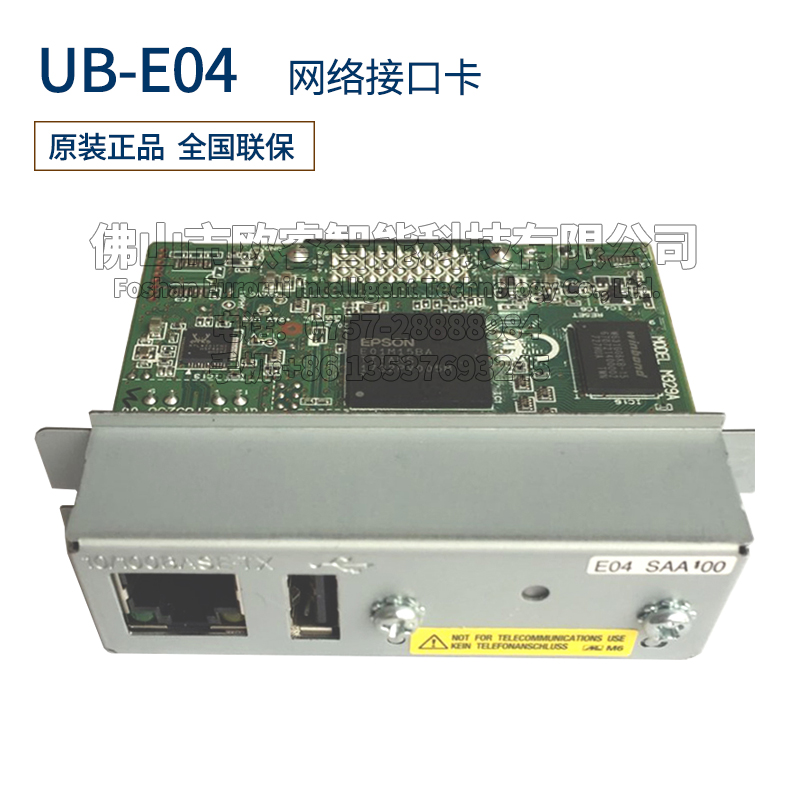

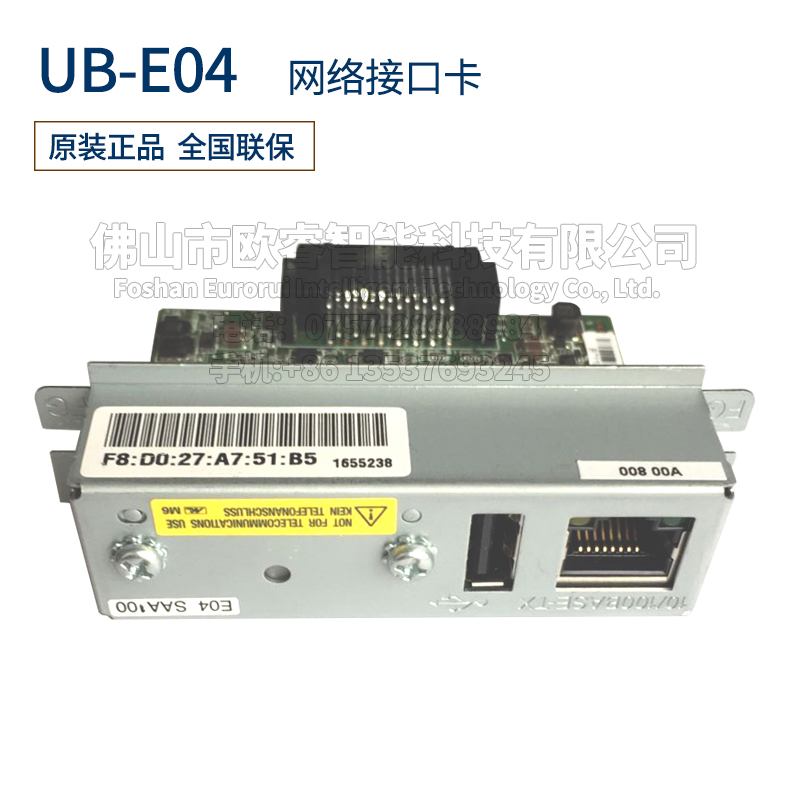

UB-E04 Connect-It™ Ethernet Interface

SPECIFICATION SHEET

UB-E04 Connect-It™

Ethernet Interface

Ethernet interface for use with mobile, cloud

and legacy POS systems.

Versatile Connect-It Ethernet module — the perfect choice for Epson® POS printers

ePOS™ Print Service — enables printing from web- and cloud-based POS applications,

as well as mobile devices

UB-E04Built-in USB port — supports Epson wireless adapters (sold separately)

Communication standards — supports IEEE 802.3 and IEEE 802.11 b/g/n

Standard TCP/IP protocol — seamless integration with virtually any POS system

Speeds up to 100 Mbps — streamline your POS system and enjoy faster transactions

Easy installation and configuration — installs directly in the printer; standard RJ-45

connectors for easy plug-and-go operation

Wide range of interface and configuration options — connect to any 10/100 Base-T

Ethernet network

Field-programmable firmware — easy setup in any setting

Dedicated technical resource team — our comprehensive service and support team

offers customized solutions to best meet your individual needs

General

UB-E04Speed Up to 100 Mbps

Connection 10BASE-T/100BASE-TX Ethernet RJ-45 network

connector

UB-E04Epson ePOS Print Service Supports ePOS Print Service for

direct printing from mobile-, web- and cloud-based applications

Status LEDs Network traffic, module/network health

Diagnostic Support

Offline report generation

Status and traffic LEDs

UB-E04Field upgradeable

Physical Communications Standard

IEEE 802.3

IEEE 802.11 b/g/n

Utility for Settings Epson NetConfig

Board Size 2.76" x 2.28" (70 mm x 58 mm)

Safety Standards EMI FCC Class A, CAN ICES-3 (A)/NMB-3 (A)

WLAN

Supports wireless LAN (IEEE 802.11b/g/n) if connected with the

dedicated wireless LAN unit (sold separately)

WLAN Frequency 2.4 Ghz

WLAN Mode

Support Mode: Infrastructure, Ad-hoc, SimpleAP

Default Mode: SimpleAP

WLAN Security WEP, WPA, WPA2-Personal, WPA2-Enterprise

Supported Protocols

Basic Communications Protocols

IP, ARP, ICMP, UDP, TCP, IGMP

Printing Protocols LPR, TCP Socket Port, ePOS Print Service

Protocol for Automatic IP Address Settings, etc.

DHCP, APIPA, DDNS (Client), Bonjour®

IP Address Assignment Manual assignment, ARP+PING

Protocol to Obtain the Product Status SNMP, ENPC

Protocol Used in the Web Application for Product

Settings (WebConfig) HTTP, HTTPs

Protocol to Update the Firmware Port9100

Protocol for Host Name Resolution DNS, DDNS, mDNS

(Bonjour)

Time Synchronization SNTP

Special Functions

Status Sheet Printing Available

Factory Default Setting Available

Certificate Management Mode Certificate (PKCS#12)

import etc.

Settings

Wireless HTTP/HTTPs

Cable Ethernet

Firmware Updates

Wireless Available

Cable Available (Ethernet)

Eco Features

Epson America, Inc. is a SmartWay® Transport Partner1

Ordering Information

UB-E04 Ethernet Interface
