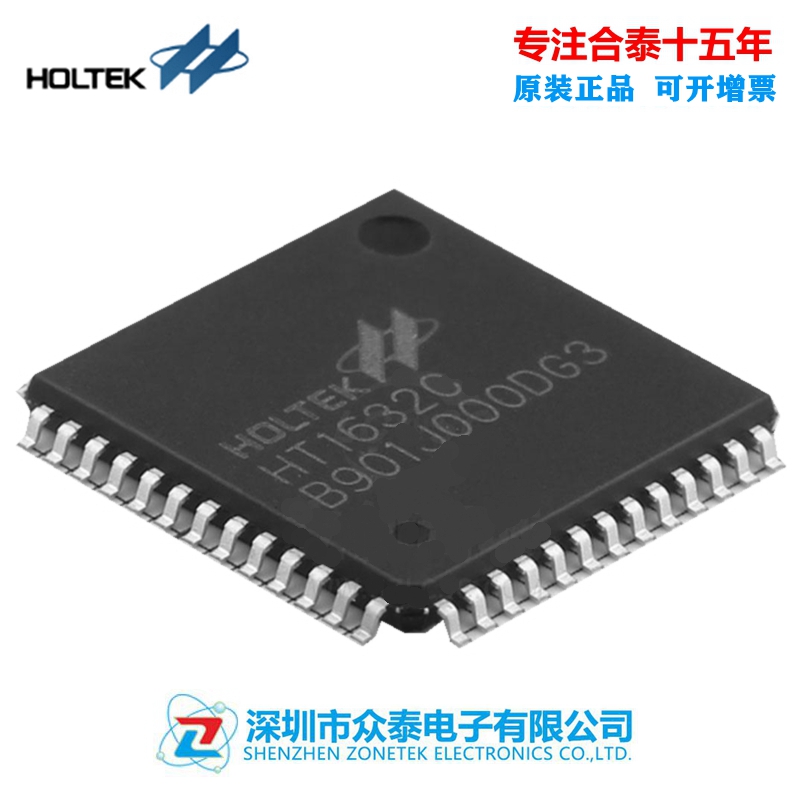

HOLTEK合泰LED驱动芯片HT1632C/52LQFP

型号/规格：
HT1632C
品牌/商标：
合泰HOLTEK
封装：
52LQFP
批号：
全新
数量：
75
PDF资料：
点击下载PDF

发布询价信息

相关产品

普通会员

企业名：深圳市众泰电子有限公司

类型：其他供应商

电话： 755-26611526
755-26516866

手机：15989433450
13602664213

联系人：肖明明(业务)/郭慎规(工程)

QQ：

邮箱：xmm1104@126.com

地址：广东深圳宝安区新桥街道万丰社区中心路18号高盛大厦A1210

产品分类

新品上架

商品信息 更新时间：2020-12-02

HT1632C

32x8 & 24x16 LED Driver
(52-pin QFP 封裝产品终止)

The HT1632C is a memory mapping LED display controller/driver, which can select a number of ROW and commons. These are 32 ROW & 8 Commons and 24 ROW & 16 Commons. The device supports 16-gradation LEDs for each out line using PWM control with software instructions. A serial interface is conveniently provided for the command mode and data mode. Only three or four lines are required for the interface between the host controller and the HT1632C. The display can be extended by cascading the HT1632C for wider applications.

Features
Documents
Development Tools
Software Library

Operating voltage: 2.4V~5.5V
Multiple LED display − 32 ROW /8 COM and 24 ROW & 16 COM
Integrated display RAM − select 32 ROW &
8 COM for 64×4 display RAM, or select
24 ROW & 16 COM for 96×4 display RA
16-level PWM brightness control
Integrated 256kHz RC oscillator
Serial MCU interface - CS, RD, WR, DATA
Data mode & command mode instruction
Cascading function for extended applications
Selectable NMOS open drain output driver and PMOS open drain output driver for commons
48/52-pin LQFP package
