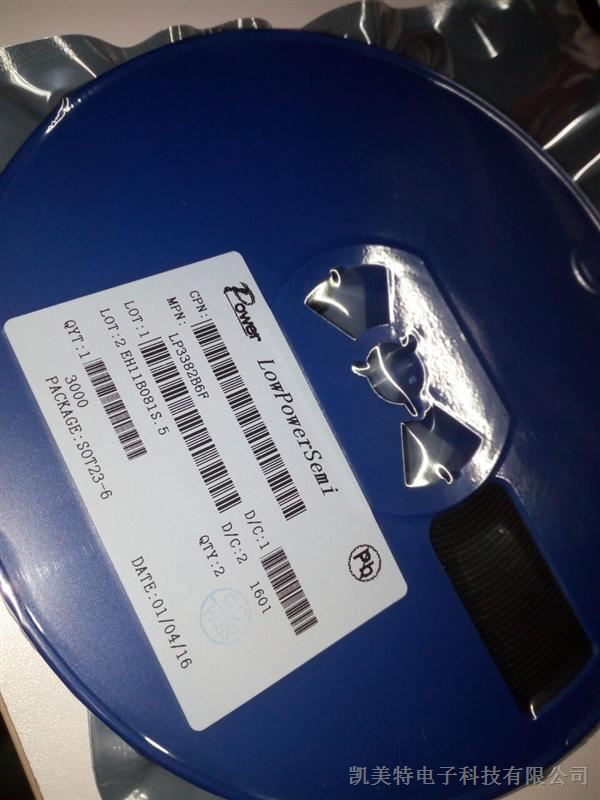

LP3382B6F LP品牌 SOT23-6封装 包装3000 驱动IC原装现货价格优惠The LP3382 is a 1.2MHz PWM boost switching regulator designed for constant- current white LED driver applications. The LP3382 can drive a string of up to 8 white LEDs in series, ensuring uniform brightness and eliminating several ballast resistors. The LP3382 implements a constant frequency 1.2MHz PWM control scheme. The high frequency PWM operation also saves board space by reducing external component sizes. To improve efficiency, the feedback voltage is set to 250 mV, which reduces the power dissipation in the current setting resistor. Highly integration and internal compensation network minimizes as 5 external component counts. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. Ordering Information LP3382 F: Pb-Free Package: B6: SOT23-6 Pin Configurations (SOT23-6) Features High Efficiency: 92% 1.2MHzFixed-Frequency PWM Operation Maximum Output Voltage up to 29V Operating Range : 2.7V to 5.5V Shutdown Supply Current:<1uA Available in SOT23-6 Package Built-in 29V Over Voltage Protection Minimize the External Component RoHS Compliant and 100% Lead (Pb)-Free Applications WLED Backlight driver OLED Backlight driver PDA MID/PTV Typical Application Circuit Cout 1uF Cin 10uF 10uH R1 12 Vin R2 100k SS0520 PWM GND 2 EN 4 FB 3 Vin 6 LX 1 OVP 5 LP3382 0-200KHz Marking information Part Number Top Marking Package LP3382B6F F5 SOT23-6 Other Infor
