产品说明：

The CAT811 and CAT812 are µP supervisory circuits that monitor power supplies in digital systems. The CAT811 and CAT812 are direct replacements for the MAX811 and MAX812 in applications operating over the industrial temperature range; both have a manual reset input.

These devices generate a reset signal, which is asserted while the power supply voltage is below a preset threshold level and for at least 140 ms after the power supply level has risen above that level. The underlying floating gate technology, AE^2(TM) used by ON Semiconductor, makes it possible to offer any custom reset threshold value. Seven industry standard threshold levels are offered to support +5.0 V, +3.3 V, +3.0 V and +2.5 V systems.

The CAT811 features a RESET push-pull output (active LOW) and the CAT812 features a RESET push-pull output (active HIGH).

Fast transients on the power supply are ignored and the output is guaranteed to be in the correct state at V_CC levels as low as 1.0 V.

The CAT811/812 are fully specified over the industrial temperature range (-40°C to 85°C) and are available in a compact 4-pin SOT143 package

特性：

Precision monitoring of +5.0 V (±5%, ±10%, ±20%), +3.3 V (±5%, ±10%), +3.0 V (±10%) and +2.5 V (±5%) power supplies

Offered in two output configurations: - CAT811: Active LOW reset - CAT812: Active HIGH reset

Manual reset input

Direct replacements for the MAX811 and MAX812 in applications operating over the industrial temperature range

Reset valid down to VCC = 1.0 V

6 µA power supply current

Power supply transient immunity

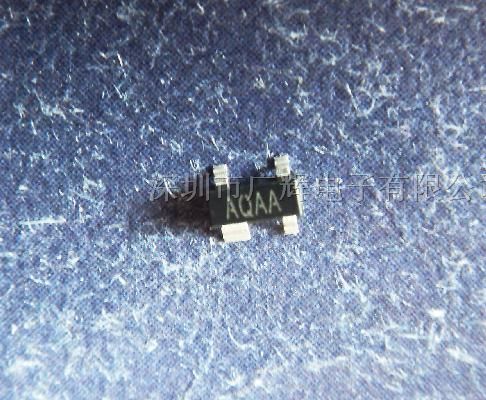

Compact 4-pin SOT143 package

Industrial temperature range: -40°C to +85°C 应用： Computers Servers Laptops Cable modems Wireless communications Embedded control systems White goods Power meters Intelligent instruments PDAs and handheld equipment 供货情况： 框图：
