说明

A Dynamic Output Control (DOC) circuit is implemented, which, during the transition, initially lowers the output impedance to effectively drive the load and, subsequently, raises the impedance to reduce noise. Figure 1 shows typical V_OL vs I_OL and V_OH vs I_OH curves to illustrate the output impedance and drive capability of the circuit. At the beginning of the signal transition, the DOC circuit provides a maximum dynamic drive that is equivalent to a high-drive standard-output device. For more information, refer to the TI application reports, AVC Logic Family Technology and Applications, literature number SCEA006, and Dynamic Output Control (DOC^TM) Circuitry Technology and Applications, literature number SCEA009.

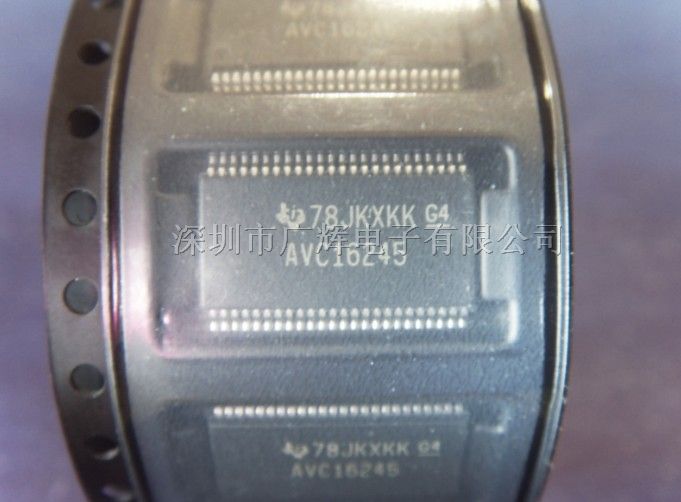

This 16-bit (dual octal) noninverting bus transceiver is operational at 1.

特性

• Member of the Texas Instruments Widebus^TM Family
• EPIC^TM (Enhanced-Performance Implanted CMOS) Submicron Process
• DOC^TM (Dynamic Output Control) Circuit Dynamically Changes Output Impedance, Resulting in Noise Reduction Without Speed Degradation
• Less Than 2-ns Maximum Propagation Delay at 2.5-V and 3.3-V V_CC
• Dynamic Drive Capability Is Equivalent to Standard Outputs With I_OH and I_OL of ±24 mA at 2.5-V V_CC
• Overvoltage-Tolerant Inputs/Outputs Allow Mixed-Voltage-Mode Data Communications
• I_off Supports Partial-Power-Down Mode Operation
• ESD Protection Exceeds JESD 22
  • 2000-V Human-Body Model (A114-A)
  • 200-V Machine Model (A115-A)
• Latch-Up Performance Exceeds 250 mA Per JESD 78
• Package Options Include Plastic Thin Shrink Small-Outline (DGG) and Thin Very Small-Outline (DGV) Packages
