品牌:数灵通 型号:4线 类型:五线电阻屏 屏幕类型:平面 屏幕尺寸:19（寸） 分辨率:4096*4096 亮度:80（cd/㎡） 点击次数:500（万次） 感应力度:35（g） 响应时间:35（ms） 接口:U* 尺寸:29*69（cm）

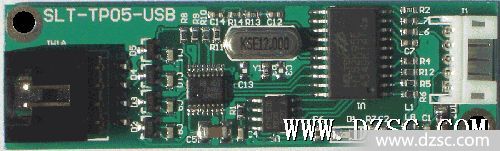

Touch Screen U* Controller for 4-Wire Analog Resistive Touch Panels. The Touch Screen Controller communicates with PC directly through U* port. It comes complete with 20-inch (controller to touch panel) extension cable and 5.5 feet (controller to computer) U* cable. The touch panel driver emulates mouse left and right button function, supports handwriting-recognition technology and supports operation systems including Windows 95 / 98 / ME / NT4 / 2000 / XP / XP Tablet PC Edition / Vista, Windows CE2.12 / 3.0 / 4.0 / 5.0 / 6.0 / .NET, DOS, Linux and iMac.
Power requirements: +5VDC, t*ical 70mA
Operating temperature: -20° C to 70° CStorage Temperature: -30° C to 85° CRelative Humidity: 95% at 60° CProtocol: U* 1.1 Low speedResolution: 2048 X 2048Accuracy Tolerance: Max. +/- 0.5% toleranceReport rate: Max. 160 points/sec, automatically adjust in 3 rates: 40, 80, 160, ensure data stabilityResponse time: Max. 24 ms, automatically adjust in 3 rate times: 6ms, 18ms, 24msRegulatory Approvals: FCC-B, CEPin Out Definition: X-, Y-, X+, Y+Panel resistance: 50 ~ 900 ohm (pin to pin on the same layer)Dimensions (L x W): 68 mm (2.7 in) x 20 mm (0.79 in)Warranty: 2 years
Calibration: Fast full oriental 4 points positionCompensation: Accuracy 25 points linearity position, Edge compensationDraw Test: Position and linearity verificationMouse Emulator: Right / Left button emulation, Normal / Click on touch / Click on release mode, Auto right buttonDisplay Support: Support monitor / display rotation, Support multiple monitor / display, Support QVGA and Half-VGA function, Support split monitorHandwriting Feature Support: Support handwriting-recognition technology
|
|
TouchScreen Controller Dimensions(pdf - 86.7 KB)
