品牌:OEM 型号:LSW0501S 类型:HDMI 5口切换器 接口:HDMI 支持系统:HDMI 分辨率:1920X1080P 远程唤醒:支持远程唤醒 电源管理:支持电源管理 OEM:可OEM
Introduction
This is a kind of high performance mini HDMI Amplifier Switcher. This kind HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function.That is to say, as soon as the power supply of the source equipment is switched, this switcher will respond automatically. In addition, it is standardly equipped with IR extender receiver : safe and convenient.

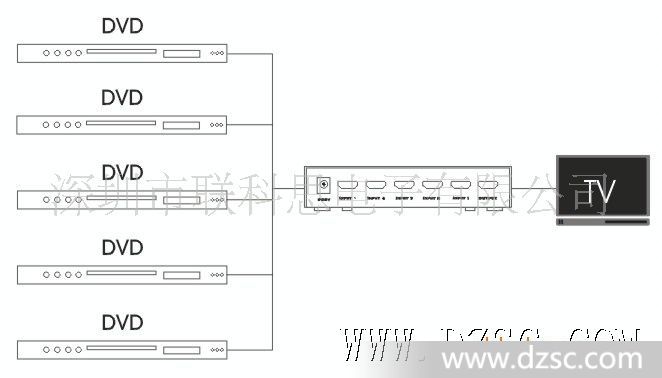

This kind of HDMI Amplifier Switcher routes high definition video (in multiple resolutions up to 1080p) and di*al audio from any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox36etc. The output sends the high definition audio/video signals to a high definition display.
Features
This MiNi HDMI Amplifier Switcher has many features that enable it to perform in a *ior manner. Among those features you will find:
Support 12-bit Deep Color, full 1080p
Multifunctional on switching : intelligent or mechanical
Supports with HDMI1.3b.
High performance up to 2.5Gbps
Supports 25Meters HDMI Cable on both ends of the Switcher
Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, 1440p graphics and computer resolutions up to 1920 x 1200 are easily achieved
IR extender receiver (included)
IR remote(included)
Power supply
SPECIFICATIONS
Signal Inputs/Output |
|
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Maximum Single Link Range | 1920X1200, 1080P |
Output Video | HDMI1.3b+HDCP1.0/1.1 |
Video format supported |
|
VGA | 640x480,800x600,1024x768,1920x1200 |
DTV/HDTV | 480i/576i/480p/576p/720p/1080i/1080P |
Di*al Signal I/O |
|
HDMI Compliance | HDMI 1.3b |
Operating Frequency |
|
Frequency | Up to250MHz |
Vertical Frequency Range | 60Hz |
Video Amplifier Bandwidth | 2.5Gpbs/250MHz |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) | 480i,576i,1080i |
Progressive(50&60Hz) | 480p,576p,720p,1080p |
Mechanical |
|
Size(H-W-D) |
|
Weight(Net) |
|
Warranty |
|
Limited Warranty | 1 Year Parts and Labor |
Environmental |
|
Operating Temperature | 0℃to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10℃to +80℃ |
Storage Humidity | 5% to 90 % RH (no condensation) |
Power Requirement |
|
External Power Supply | 5V DC@2A |
Regulatory Approvals |
|
Unit | UL,CE,FCC |
Power Supply | UL,CE,FCC |
Accessories Adapter |
|
AC Power Adapter | US standard, UK standard and so on |
IR extender receiver |
|
IR remote |
|
User Manual | English Version |
