Features：
Customer designs, Rock wipe contact action, Integral hinge actuator, Long life coil spring mechani*, Large over travel |
Specifications： |
Operating Frequency (mechanical).....300 operations / mim |
Operating Frequency (electrical).....10 ~ 30 operations / mim |
Contact Resistance (initial).....30m,100m Ω (Max.) |
Insulation Resistance (at 500VDC).....100M Ω (Min.) |
Dielectric Strength (50-60Hz).....AC 1,000V RMS |
Storage Temperature.....-25 ~ 85(120optionl) ℃ |
Storage Humidity.....85% RH (Max.) |
Service Life (mechanical).....5,000,000~10,000,000 operations |
Service Life (electrical).....6,000 ~100,000 operations |
Application：
Joystick , TV game , Time recorder , Air conditioner , Food processor ,
Juice maker , Alarm , Mixer , SHredder machine , etc. |
Contact Configuration：
Operating Characteristics：
Ordering Information：
Terminal T*es：

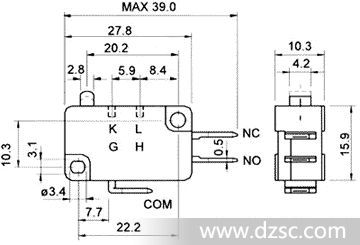

Mounting Holes：
The Selection of Rating & Force：
 |
