是
LED点阵
BL-M12A883B-21
BETLUX
全彩
静态显示
Ф3（mm）
多种（mm）
多种（mm）
多种（英寸）
高亮
标准
企业名：宁波贝鲁克光电有限公司
类型：生产企业
电话： 574-88087719
联系人：唐先生
邮箱：1310712139@qq.com
地址：浙江宁波镇海区镇骆西路1988号3楼

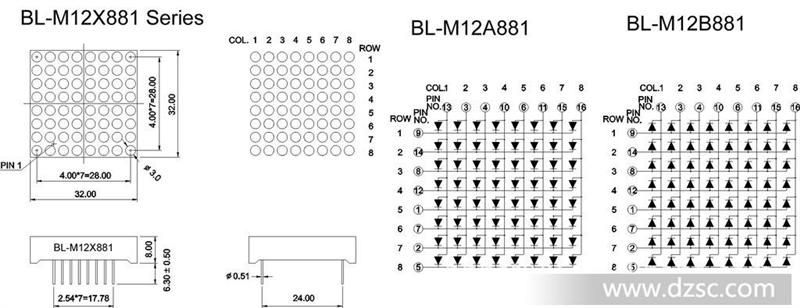

特点：
列:8,行:8
1.2英寸矩阵高度
网点大小：3.00mm
低电流操作
高对比度，输出亮度较高
兼容ASCII码和EBCDIC代码
水平叠加
共阴共阳可选
便于安装在PC板和PC槽上
分类为发光强度
标准:灰面白字
*合ROHS
Super Bright
Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Row Cathode Column Anode | Row Anode Column Cathode | Emitted Color | Material | lP (nm) | ||||
T* | Max | |||||||
BL-M12A883S-XX | BL-M12B883S-XX | Hi Red | GaAlAs/GaAs,SH | 660 | 1.85 | 2.20 | 200 |
|
BL-M12A883D-XX | BL-M12B883D-XX | Super Red | GaAlAs/GaAs,DH | 660 | 1.85 | 2.20 | 320 |
|
BL-M12A883UR-XX | BL-M12B883UR-XX | Ultra Red | GaAlAs/GaAs,DDH | 660 | 1.85 | 2.20 | 400 |
|
BL-M12A883E-XX | BL-M12B883E-XX | Orange | GaAsP/GaP | 635 | 2.10 | 2.50 | 190 |
|
BL-M12A883Y-XX | BL-M12B883Y-XX | Yellow | GaAsP/GaP | 585 | 2.10 | 2.50 | 190 |
|
BL-M12A883G-XX | BL-M12B883G-XX | Green | GaP/GaP | 570 | 2.20 | 2.50 | 195 |
|
Ultra Bright
Electrical-optical characteristics: (Ta=25°C) (Test Condition: IF=20mA)
Part No | Chip | VF Unit:V | Iv TYP.(mcd) | |||||
Row Cathode Column Anode | Row Anode Column Cathode | Emitted Color | Material | lP (nm) | ||||
T* | Max | |||||||
BL-M12A883UHR-XX | BL-M12B883UHR-XX | Ultra Red | AlGaInP | 645 | 2.10 | 2.50 | 400 |
|
BL-M12A883UE-XX | BL-M12B883UE-XX | Ultra Orange | AlGaInP | 630 | 2.10 | 2.50 | 235 |
|
BL-M12A883YO-XX | BL-M12B883YO-XX | Ultra Amber | AlGaInP | 619 | 2.10 | 2.50 | 235 |
|
BL-M12A883UY-XX | BL-M12B883UY-XX | Ultra Yellow | AlGaInP | 590 | 2.10 | 2.50 | 235 |
|
BL-M12A883UG-XX | BL-M12B883UG-XX | Ultra Green | AlGaInP | 574 | 2.20 | 2.50 | 250 |
|
BL-M12A88*G-XX | BL-M12B88*G-XX | Ultra Pure Green | InGaN | 525 | 3.80 | 4.50 | 270 |
|
BL-M12A883B-XX | BL-M12B883B-XX | Ultra Blue | InGaN | 470 | 2.70 | 4.20 | 180 |
|
BL-M12A883W-XX | BL-M12B883W-XX | Ultra White | InGaN | / | 2.70 | 4.20 | 300 |
|
