1500(W)
3.175、6(mm)
450(mm)
400(mm)
6000-24000(r/min)
3.175、6
是
185(kg)
交流电源
4540
1200(mm)
工业模具、精密冲模、热切模、建筑模型、广告标牌、铭牌、指示牌、胸牌印章、烫金版
企业名:上海金衡数控设备有限公司
类型:生产加工
电话: 20-82318936
联系人:罗玲
地址:广东广州中山大道中77号时尚明苑202室QQ:742904157
技术参数
产品型号 | JH4540 |
加工尺寸 | 450*400*75mm |
主轴电机 | 1500w |
雕刻速度 | 8000mm/min |
刀具 | φ3.175、φ4、φ6可选配 |
指令格式 | HPGL\G 代码 |
分辨率 | 0.01mm |
主轴转速 | 6000-24000rpm |
XYZ导轨 | 台湾PMI直线导轨 |
XYZ传动方式 | 德国*滚珠丝杆 |
■ 可选配分度头旋转装置 ■可选配伺服系统
■ 可选配浮动刀头 ■可选配吸尘装置
■ 可选配铸铁台面 ■可选配水冷却装置
■ 可选配吸气装置
机型特点
X,Y,Z各轴均采用*直线导轨;
全模具化生产,机械稳定性有*;
机体,龙门立柱均采用整体金属铸造件,刚性好,运行平稳,机床整体振动小;
X,Y,Z各轴均采用*滚珠丝杆,滑块预紧配置,*滑块无间隙,加工精度有*;
兼容TYPE3/ARTCAM/文泰等各种CAD/CAM设计软件;
擅长对各类工件进行*精密加工。
适用范围Application

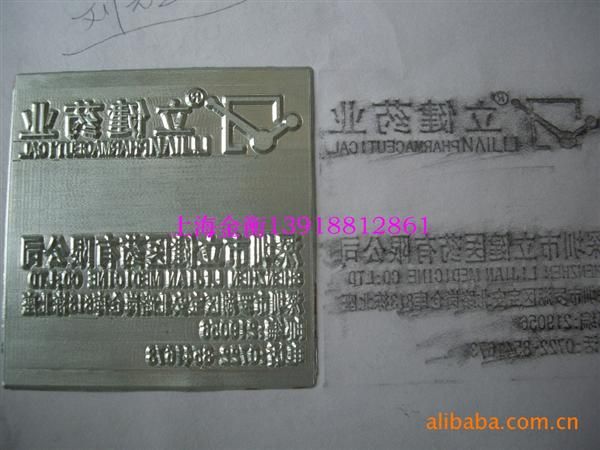

*劲、使用方便、坚固耐用、性能*、价格经济,主要应用于工业模具、精密冲模、热切模、建筑模型、广告标牌、铭牌、指示牌、胸牌印章、烫金版、PCB版、压痕板、仪表面板、电*、玉石、工艺饰品、木工制品、铁、铜、铝、塑料板等产品的加工和制作。
Model | JH4540 |
Working Area | 450*400*75mm |
Spindle Motor | 1.5kw |
Motion Speed | 8000mm/min |
Engraving Tools | Φ3.175、φ4、φ6 |
Dictate Format | HPGL、G CODE |
Resolution | 0.01mm |
Rotation Speed | 6000-24000rpm |
XYZ Rail | PMI Linear rail made in Taiwan |
XYZ Driving Mode | rolling ball screw from Germany |
Optional:
◆Rotary device ◆Servo system
◆Floating head ◆Dust collecting system
◆Cast iron table ◆Water cooling system
◆Vacuum system
Distinguished Features:
◆Imported linear guiding rail for X、Y and Z axis;
◆Adopting mold production to ensure the machine stability;
◆Integral iron cast structure for machine body and gantry to ensure better ragidity、more *oothly running and less vibration for whole machine;
◆Imported rolling ball screw for X、Y and Z axis; pre-tighten system for the slider to ensure no gap for the slider and high precision for the processing;
◆Compatible with popular CAD/CAM software such as TYPE3、ArtCAM、and Artgrave etc.
◆Be good at processing kinds of materials in high efficiency and high precision;
Application :
Strong functions, easy operation ,sturdy, durable realizable performance, reasonable price, rich functions ,wide application; can be used to process and make industrial mould, punching moulds and thermos dies ,construction models, sign products ,bill plates ,chest brands ,seals, metal foil moulds ,PCB, creasing plate, instrument panel, jade, graphite, electrode , wood , copper、iron、aluminum plates ,etc.
