installation

Shielding t*e

UN-Shielding t*e

T

Y

P

E

DC

t*e

N

P

N

*

K-E2E-X1R5E1

K-E2E-X2ME1

NC

K-E2E-X1R5E2

K-E2E-X2ME2

*+NC

P

N

P

*

K-E2E-X1R5F1

K-E2E-X2MF1

NC

K-E2E-X1R5F1

K-E2E-X2MF2

Two

wire

*

K-E2E-X1R5D1

K-E2E-X2MD1

NC

K-E2E-X1R5D2

K-E2E-X2MD2

AC t*e

*

NC

Detection distance

1.5mm+/-15%

2mm+/-15%

Standard detection object

Iron8*8*1mm

Iron 12*12*1mm

Response frequency

DC:2Khz /0.8HZ AC:25Hz

Delay distance:

10% below of the detection distance

Supply voltage

DCt*e:DC12-24V Impulse(p-p)10%below(6-36V)

ACt*e:AC110-220V Impulse 50/60Hz(90-250V)

Consumption current

DC t*e(NPN,PNP,Two-wire):8MA/12V,15ma/24V

AC t*e:1.7mA below

Control output

DC t*e(NPN,PNP,Two-wire):DC12V MAX100ma,DC24Vmax300mA

A t*e:10-300mA

Loop protection

DC t*e: reversal connection protection, surge absorption, load short-circuit protection

Insulation resistance

50 MΩ about(DC500 v) between charging and housing

Withstand voltage

AC1000V50/60Hz 1 min between charging and housing

Temperature influence

Temperature range-25~+75(Not frozen)

Voltage influence

Inside+/-15%rated supply voltagerange,at rated supply voltage value

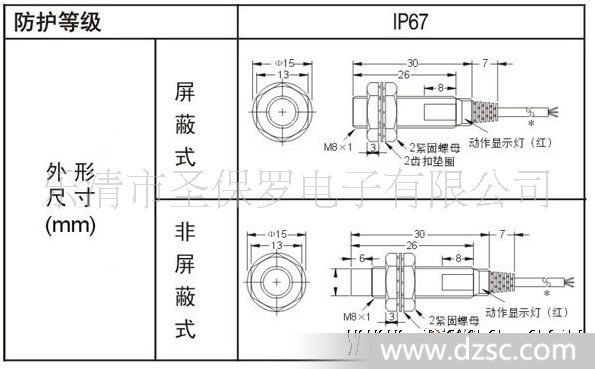

Protection grade

IP67
