BI1-EH03-AN7X 电感式传感器，电感式传感器价格，图尔克，TURCK

                                                                                                                         直径3 mm 的光滑圆柱

                                                                                                                         不锈钢1.4301

                                                                                                                         3线直流, 10…30 VDC

                                                                                                                         常开npn输出

                                                                                                                         TTL兼容

                                                                                                                         电缆连接

                                                                                                                      接线图

      型号                                                     BI1-EH03-AN7X
      货号                                                     1619323
                                                                                                                     功能原理

      额定工作距离Sn                                               1  mm                                                    电感式传感器通过高频交流电磁场以无磨损和
      安装方式                                                   齐平                                                      非接触的方式检测 金属物体。对普通传感器而
      实际测量范围                                                 ð (0,81 x Sn) mm                                        言，磁场由绕在铁氧体芯线圈上的LC振荡电路
      修正系数                                                   St37 = 1, V2A = 0.7, Ms = 0.4, Cu = 0.3, Al = 0         产生。
      重复精度                                                   ð 5 %
      温度漂移                                                   ð &plu*n; 10 %
      磁滞                                                     3…20
      环境温度                                                   -25… 70

      工作电压                                                   10…30
      余波                                                     ð 10 % Uss

      直流额定工作电流                                               ð 100 mA
      空载电流I0                                                 ð 10 mA

      漏电流                                                    ð 0.1 mA
      额定*缘电压                                                 ð 75 kV
      短路保护                                                   否
      压降在Ie                                                  ð  1.5 V

      断路/反*性保护                                               是/ 是（供电电压）
      输出性能                                                   3线, 常开触点, NPN
      开关频率                                                   ð  5  kHz

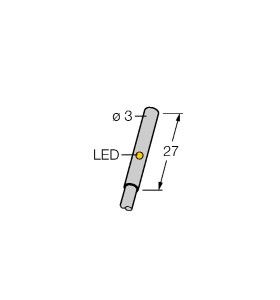

      设计                                                     光滑圆柱, 3 mm
      尺寸                                                     27
      外壳材料                                                   金属, V2A (1.4301)
      感应面材料                                                  塑料, POM
      连接                                                     电缆
      线缆材质                                                   2.6 mm, Lif*-11Y, PUR, 2m
      线缆横截面：                                                 3 x 0.09
      *震动性                                                   55 Hz (1 mm)
      *冲击性                                                   30  g (11 ms)
      *护等级                                                   IP67

      开关状态指示                                                 LED指示灯 红
