BI2-EH6,5K-AN6X-V1131 电感式传感器，电感式传感器价格，图尔克，TURCK

                                                                                                                         直径6.5 mm 的光滑圆柱

                                                                                                                         不锈钢1.4404

                                                                                                                         大检测距离

                                                                                                                         3线直流, 10…30 VDC

                                                                                                                         常开npn输出

                                                                                                                         M8 x 1连接器

                                                                                                                      接线图

      型号                                                     BI2-EH6,5K-AN6X-V1131
      货号                                                     4610120
                                                                                                                     功能原理

                                                                                                                      电感式传感器以无磨损和非接触的方式来检测
      额定工作距离S                                                2  mm
      安装方式                                                   齐平                                                      金属物体 基于此目的它通过高频交流电磁场来
      实际测量范围                                                 ð (0,81 x Sn) mm                                        检测被测物 对电感式传感器而言，磁场由绕在
      修正系数                                                   St37 = 1, V2A = 0.7, Ms = 0.4, Cu = 0.3, Al = 0         铁氧体芯线圈上的LC振荡电路产生。

      重复精度                                                   ð 2 %
      温度漂移                                                   ð &plu*n; 10 %
      磁滞                                                     3…15
      环境温度                                                   -25… 70

      工作电压                                                   10…30
      余波                                                     ð 10 % Uss

      直流额定工作电流                                               ð 150 mA
      空载电流I0                                                 ð 15 mA

      漏电流                                                    ð 0.1 mA
      额定*缘电压                                                 ð 0.5 kV
      短路保护                                                   是/ 循环
      压降在Ie                                                  ð  1.8 V

      断路/反*性保护                                               是/ 是
      输出性能                                                   3线, 常开触点, NPN
      开关频率                                                   ð  3  kHz

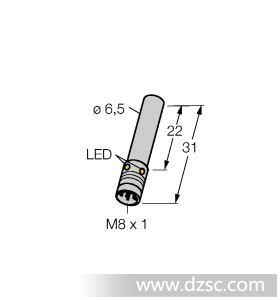

      设计                                                     光滑圆柱, 6.5 mm
      尺寸                                                     31
      外壳材料                                                   金属, V4A (1.4404)
      感应面材料                                                  塑料, 塑料, PA12-GF20
      连接                                                     接插件, M8 x 1
      *震动性                                                   55 Hz (1 mm)
      *冲击性                                                   30  g (11 ms)
      *护等级                                                   IP67

      开关状态指示                                                 LED指示灯 黄
