品牌:XHX 型号:HD-01 类型:HDMI 接口:HDMI 分辨率:1080P 远程唤醒:支持远程唤醒 电源管理:不支持电源管理 OEM:可OEM
Features

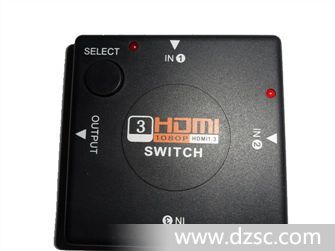

This HDMI Switcher has many features that enable it to perform in a *ior manner. Among those features you will find:
1、Support with HDMI1.3b
2、Support 12-bit Deep Color.
3、24K gold plated connector
4、High performance up to 2.5Gbps
5、Multifunctional on switching : intelligent or mechanical
6、Maintains high resolution video - beautiful, sharp HDTV resolutions up to 1080p, 2k, and computer resolutions up to 1920 x 1200 are easily achieved
7、HDMI p*-through
8、HDCP p*-through
SPECIFICATIONS
Signal Inputs/Output |
|
Input Video Signal | 0.5-1.0 volts p-p |
Input DDC Signal | 5 volts p-p (TTL) |
Maximum Single Link Range | 1920X1200, 1080P |
Output Video | HDMI 1.3b + HDCP 1.0/1.1 |
Video format supported |
|
DTV/HDTV | 480i/576i/480p/576p/720p/1080i/1080P |
Di*al Signal I/O |
|
HDMI Compliance | HDMI 1.3b |
Operating Frequency |
|
Video Amplifier Bandwidth | 2.5Gpbs/250MHz |
Vertical Frequency Range | 50/60Hz |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) | 480i,576i,1080i |
Progressive(50&60Hz) | 480p,576p,720p,1080p |
Warranty |
|
Limited Warranty | 1 Year Parts and Labor |
Environmental |
|
Operating Temperature | 0 ℃ to +70℃ |
Operating Humidity | 10% to 85 % RH (no condensation) |
Storage Temperature | -10℃ to +80℃ |
Storage Humidity | 5% to 90 % RH (no condensation) |
