是
整流管
否
PN
PF
硅(Si)
正向直流电流35A 反向击穿电压大于400V
车用发电机整流二*管
企业名：湖北烨和电子科技有限公司
类型：生产企业
电话： 8607124767777
联系人：周慧
地址：湖北
提供BOSCH PR*S-FIT 各种规格整流二*管。

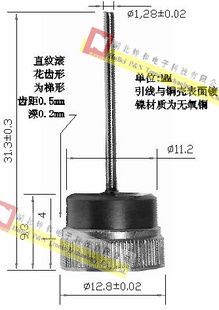

DIODE : BO PF 35A POS/NEG
DIM(mm)：12.8
LEAD(mm)：1.28
| SY*OL | PF-5 |
UNITS | ||||||
3505 | 351 | 352 | 354 | 356 | 358 |
| |||
*大峰值反向电压 Maximum current Peak Reverse Voltage | VRRM | 50 | 100 | 200 | 400 | 600 | 800 | Volts | |
*大反向*电流 Maximum RMS Voltage | VRMS | 35 | 70 | 140 | 280 | 420 | 560 | Volts | |
*大直流阻断电压 Maximum DC Blocking Voltage | VDC | 50 | 100 | 200 | 400 | 600 | 800 | Volts | |
*大正向平均整流电流TT=125℃ Maximum Average Forward Rectified Current | I(*) | 35 | Amps | ||||||
正向峰值浪涌电流 Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC Method) | IFSM | 400 | Amps | ||||||
35A直流电时*大正向*电压降 Maximum Instantaneous Forward Voltage @35A | VF | 1.0 | Volts | ||||||
*大反向漏电流 Maximum DC Reverse Current @ TA=25℃ at Rated DC Blocking Voltage @ TA=125℃ | IR | 5.0 500.0 | uA | ||||||
典型结电容 T*ical Junction Capacitance | CJ | 300 | pF | ||||||
典型热阻 T*ical Thermal Resistance | RΘJA | 1.0 | ℃/W | ||||||
工作温度存储温度 Operating AND Storage Temperature Range | TJ/TSTG | -55 to +150 | ℃ | ||||||
