供应德国ixxat品牌can转usb接口卡，can接口卡，can转换器，can总线卡,can总线接口卡，can网关，can网桥，can中继器，can转以太网接口，can转蓝牙，can转pci接口卡，can转PCIe接口卡，can转PMC接口卡

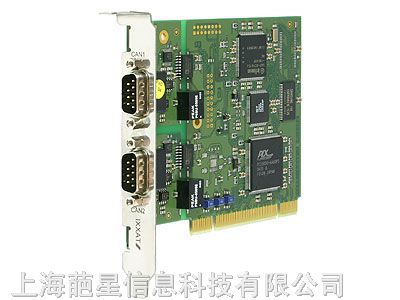

Passive CAN interface board for CAN, CANopen and DeviceNet

Technical Data

PC bus interface	PCI Bus (V 2.1), 32 Bit, 33MHz, 5V
PC address range	Plug & Play, 1024 bytes memory mapped and 128 bytes I/O area
Interrupts	INT A, Plug & Play
CAN controller	SJA 1000; CAN 2.0 A/B
CAN bus interface	ISO 11898-2, Sub D9 connector according to CiA 303-1
Power supply	5 V DC, 300 mA t*.
Temperatur range	-20 ºC ... +70 ºC
Galvanic isolation	optional (1 kV, 1 sec.)
Certification	CE, CSA/UL
Size	Approx. 95 x 125 mm

Contents of delivery
- PC/CAN interface card, manual
- CAN driver VCI for Windows 2000, XP, Vista, Windows 7
- Simple CAN monitor "miniMon"

Order number

1.01.0057.10100	PC-I 04/PCI; one CAN channel
1.01.0057.10200	PC-I 04/PCI; one CAN channel with galvanic isolation
1.01.0057.11220	PC-I 04/PCI; two CAN channels with galvanic isolation
