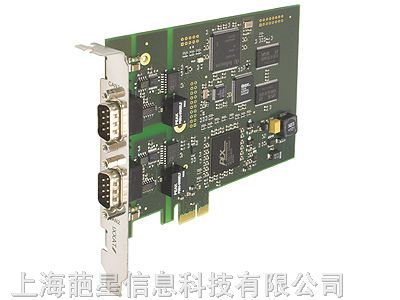

德国ixxat品牌can转PCIe接口卡

型号/规格：
iPC-I XC16/PCIe
品牌/商标：
ixxat

发布询价信息

普通会员

企业名：上海葩星信息科技有限公司

类型：生产企业

电话： 021-51870017

联系人：钱经理

邮箱：passiontechinc@163.com

地址：上海上海市徐汇区斜土路2601号嘉汇广场T1楼28F

产品分类

其他未分类(12)

新品上架

商品信息

供应德国ixxat品牌can转usb接口卡，can接口卡，can转换器，can总线卡,can总线接口卡，can网关，can网桥，can中继器，can转以太网接口，can转蓝牙，can转pci接口卡，can转PCIe接口卡，can转PMC接口卡

Technical Data

PC bus interface	PCIe (r1.0a), x1 link (2,5 Gbps per direction)
PC address range	Plug & Play, 16 kB memory mapped and 128 bytes I/O area
Interrupts	INT A, Plug & Play
Microcontroller	Infineon XC161
CAN controller	TwinCAN (two CAN channels); CAN 2.0 A/B
CAN bus interface	ISO 11898-2 according to CiA 303-1, Sub D9 connector, optional high-/low-speed bus interface (ISO 11898-3) switchable via software
Power supply	12 V DC, 60 mA t.; 3.3 V DC, 200 mA t.
Galvanic isolation	1 kV, 1 sec.
Temperature range	0 ºC ... +70 ºC
Certification	CE, FCC
Size	Approx. 90 x 150 mm

Order options
- LIN interface on request
- CAN high/low speed bus interface on request

Contents of delivery
- PC/CAN interface card and manual
- CAN driver VCI for Windows 2000, XP, Vista, Windows 7
- Simple CAN monitor "miniMon"
