是
ISC
2SA658
放大
硅(Si)
PNP型
平面型
直插型

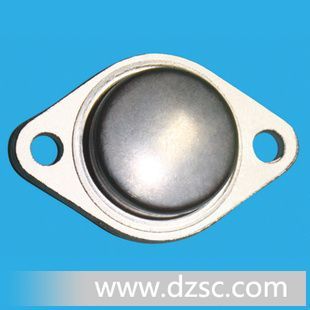

金属封装
企业名：无锡固电半导体股份有限公司
类型：生产企业
电话： 0510-85346980
联系人：谈增琴
QQ：
邮箱：wisca@pub.jsinfo.com
地址：江苏无锡无锡新区新梅路68号
·Collector-Emitter Breakdown Voltage-
: V(BR)CEO= -50V(Min.)
·Complement to T*e 2SC521
APPLICATIONS
·Power amplifier applications.
·Power switching applications.
·DC-DC converter applications.
·Regulator applications.
SY*OL | PARAMETER | VALUE | UNIT |
VCBO | Collector-Base Voltage | -70 | V |
VCEO | Collector-Emitter Voltage | -50 | V |
VEBO | Emitter-Base Voltage | -5 | V |
IC | Collector Current-Continuous | -7 | A |
IB | Base Current | -2 | A |
PC | Collector Power Dissipation @TC=25℃ | 50 | W |
Tj | Junction Temperature | 150 | ℃ |
Tstg | Storage Temperature | -65~150 | ℃ |
ELE*RICAL CHARA*ERISTICS
Tj=25℃unless otherwise specified
SY*OL | PARAMETER | CONDITIONS | MIN | TYP. | MAX | UNIT |
V(BR)CEO | Collector-Emitter Breakdown Voltage | IC= -50mA; IB= 0 | -50 |
|
| V |
VCE(sat) | Collector-Emitter Saturation Voltage | IC= -5A; IB= -1A |
|
| -2.0 | V |
VBE(sat) | Base-EmitterSaturationVoltage | IC= -5A; IB= -1A |
|
| -2.5 | V |
ICBO | Collector Cutoff Current | VCB= -70V; IE= 0 |
|
| -0.1 | mA |
IEBO | Emitter Cutoff Current | VEB= -5V; IC= 0 |
|
| -5 | mA |
hFE-1 | DC Current Gain | IC= -1A; VCE= -5V | 30 |
| 300 |
|
hFE-2 | DC Current Gain | IC= -5A; VCE= -5V | 15 |
|
|
|
COB | Collector Output Capacitance | IE= 0; VCB= -10V; f= 1MHz |
| 150 |
| pF |
fT | Current-Gain—Bandwidth Product | IC= -1A; VCE= -10V |
| 5 |
| MHz |
