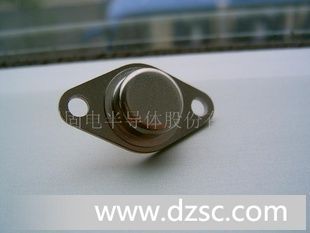

无锡固电ISC 供应2N6302 三管直插三管增强型MOS管

发布询价信息

普通会员

产品分类

新品上架

商品信息

D*CRIPTION

·Excellent Safe Operating Area

·HighDC Current Gain-

: h_FE=15-60@I_C= 8A

·Low Saturation Voltage-

: V_CE(sat)= 1.0V(Max)@ I_C= 10A

APPLICATIONS

·Designed for use in high power audio amplifier applications

and high voltage switching regulator circuits.

ABSOLUTE MAXIMUM RATINGS(T_a=25℃)

*SYOL**	PARAMETER	VALUE	UNIT
V_CBO	Collector-Base Voltage	140	V
V_CEO	Collector-Emitter Voltage	140	V
V_EBO	Emitter-Base Voltage	7	V
I_C	Collector Current-Continuous	16	A
I_CM	Collector Current-Peak	20	A
I_B	Base Current-Continuous	5	A
P_C	Collector Power Dissipation @T_C=25℃	150	W
T_J	Junction Temperature	200	℃
T_stg	Storage Temperature	-65~200	℃

THERMAL CHARA*ERISTICS

*SYOL**	PARAMETER	MAX	UNIT
R_{th j-c}	Thermal Resistance,Junction to Case	0.875	℃/W

ELE*RICAL CHARA*ERISTICS

T_C=25℃unless otherwise specified

*SYOL**	PARAMETER	CONDITIONS	MIN	MAX	UNIT
V_CEO(SUS)	Collector-Emitter Sustaining Voltage	I_C= 100mA; I_B= 0	140		V
V_CE_(sat)_-1	Collector-Emitter Saturation Voltage	I_C= 10A; I_B= 1A		1.0	V
V_CE_(sat)_-2	Collector-Emitter Saturation Voltage	I_C= 16A; I_B= 4A		2.0	V
V_BE_(sat)	Base-Emitter Saturation Voltage	I_C= 10A; I_B= 1A		1.8	V
V_BE(_on₎	Base-Emitter On Voltage	I_C= 8A ; V_CE= 4V		1.5	V
I_CEO	Collector Cutoff Current	V_CE= 70V; I_B= 0		2.0	mA
I_CEV	Collector Cutoff Current	V_CE= 140V; V_BE(off)= 1.5V V_CE= 140V; V_BE(off)= 1.5V,T_C=150℃		1.0 5.0	mA
I_CBO	Collector Cutoff Current	V_CB= 140V; I_E= 0		1.0	mA
I_EBO	Emitter Cutoff Current	V_EB= 7V; I_C= 0		1.0	mA
h_FE-1	DC Current Gain	I_C= 8A ; V_CE= 4V	15	60
h_FE-2	DC Current Gain	I_C= 16A ; V_CE= 4V	4
f_T	Current Gain-Bandwidth Product	I_C= 1A ; V_CE= 10V; f= 1.0MHz	0.2		MHz
