FAIRCHILD/仙童
HGTG7N60A4D,TO-3P,IGBT,600V,14A
绝缘栅(MOSFET)
N沟道
增强型
P-DIT/塑料双列直插
IGBT绝缘栅比极
±30
7
14A
企业名:深圳市金城微零件有限公司
类型:经销商
电话: 0755-83683996
联系人:钟丽华
邮箱:2355799088@qq.com
地址:广东深圳深圳市福田区华富路航都大厦13E(上海宾馆后面) 门市1部:深圳市福田区中航路新亚洲电子商城1C043室 门市2部:深圳福田区华强北中航路都会电子城1C021室
HGTG7N60A4D,TO-3P,IGBT,600V,14A

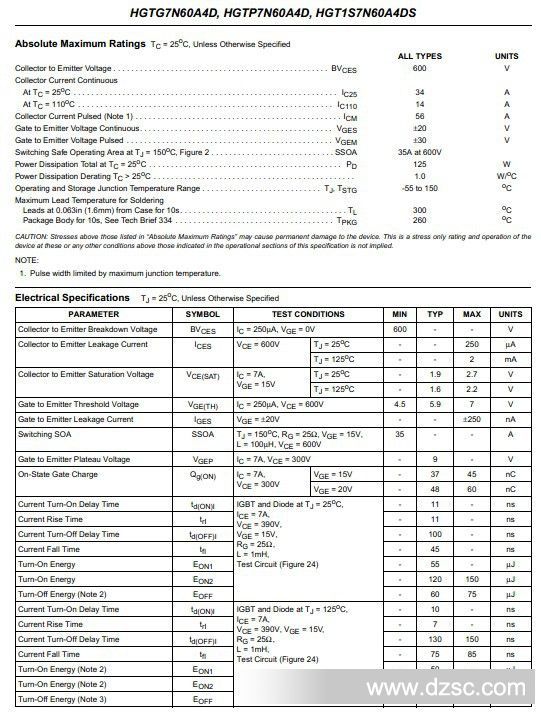

600V, SMPS Series N-Channel IGBT with Anti-Parallel Hyperfast Diode
The HGTG7N60A4D, HGTP7N60A4D and HGT1S7N60A4DS are MOS gated high voltage switching devices combining the best features of MOSFETs and bipolar transistors. These devices have the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. The much lower on-state voltage drop varies only moderately between 25o
C and 150oC. The IGBT used is the development type TA49331. The diode used in anti-parallel is the development type TA49370.This IGBT is ideal for many high voltage switching applications operating at high frequencies where low conduction losses are essential. This device has been optimized for high frequency switch mode power supplies.
Features
• >100kHz Operation At 390V, 7A
• 200kHz Operation At 390V, 5A
• 600V Switching SOA Capability
• Typical Fall Time. . . . . . . . . . . . . . . . . 75ns at TJ= 125
• Low Conduction Loss
• Temperature Compensating SABER™ Model
www.fairchildsemi.com
